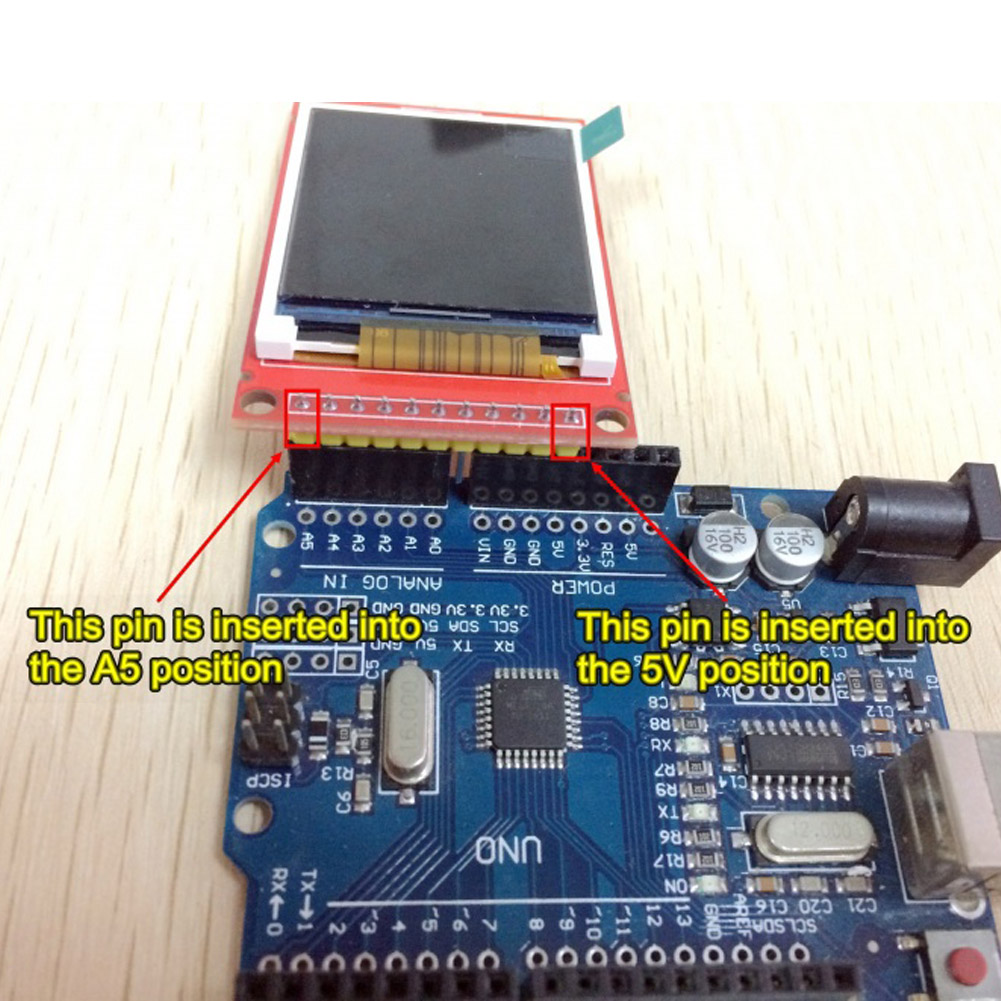

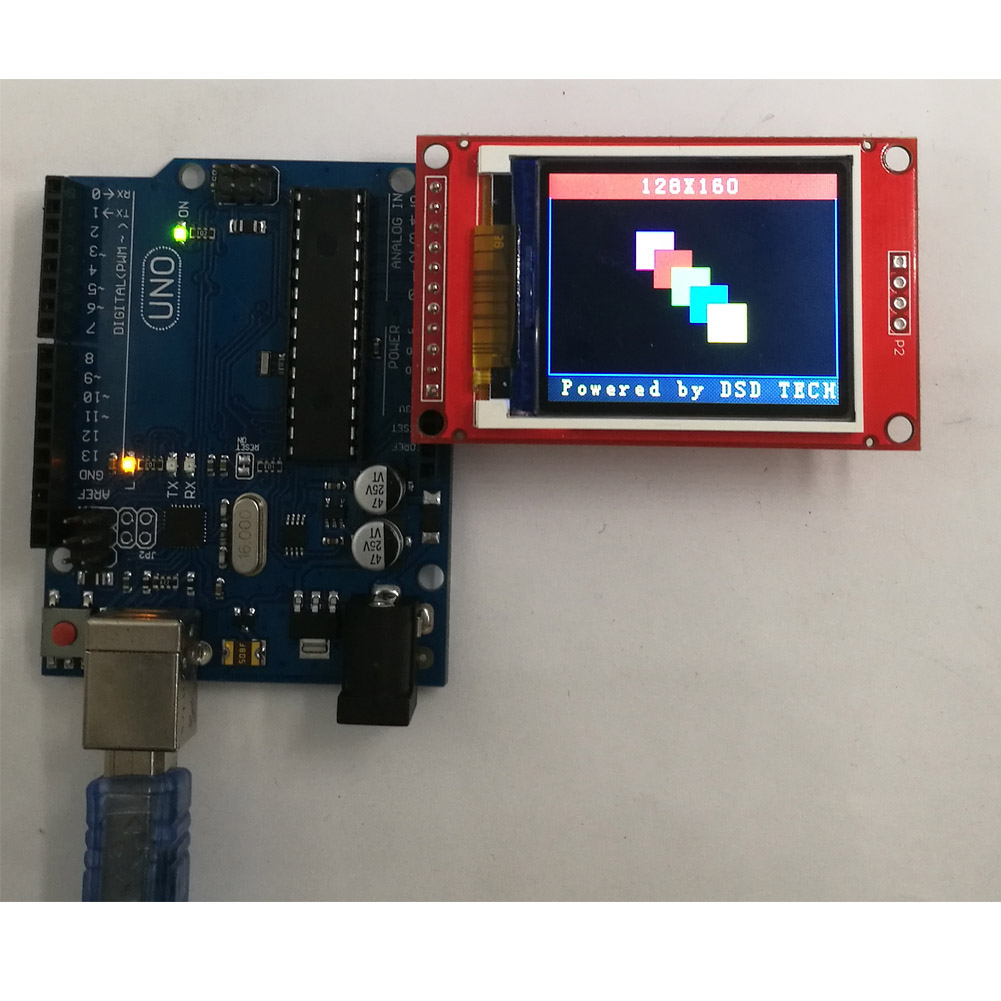

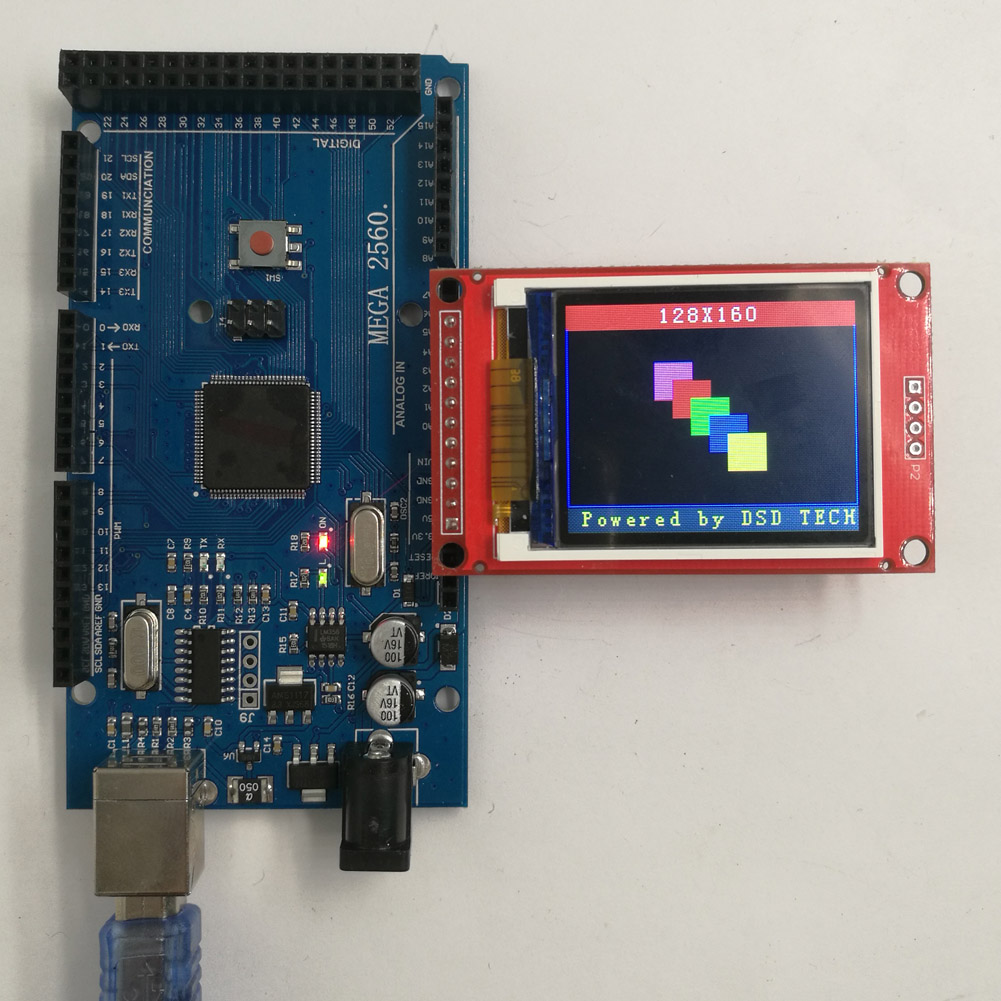

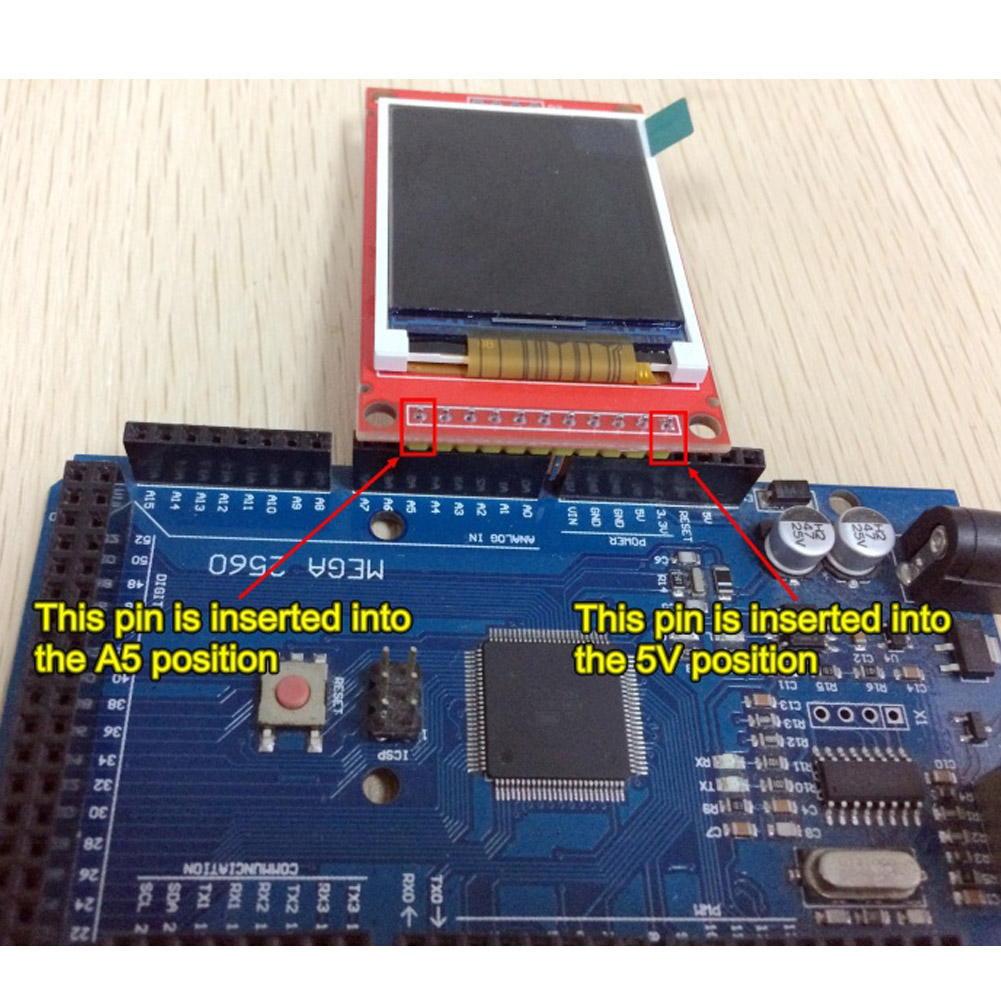

This is a 1.8 inch color screen that can display fullcolors, suitable for electronic enthusiasts and students to use in development boards such as arduino and raspberry pi. The TFT LCD display can be directly inserted into arduino, which is convenient and quick. Using SPI communication mode, only 4 IOs are needed to illuminate the display, and the SD card slot is convenient for function expansion. Support 16BIT RGB 65K color display, 128X160 resolution, ST7735s driver chip, working voltage is 5V/3.3V, weight is 15g DSD TECH provides sample code for the Arduino for this TFT LCD. With the sample code, you can use this LCD screen in 10 minutes.
Technical Support & File：

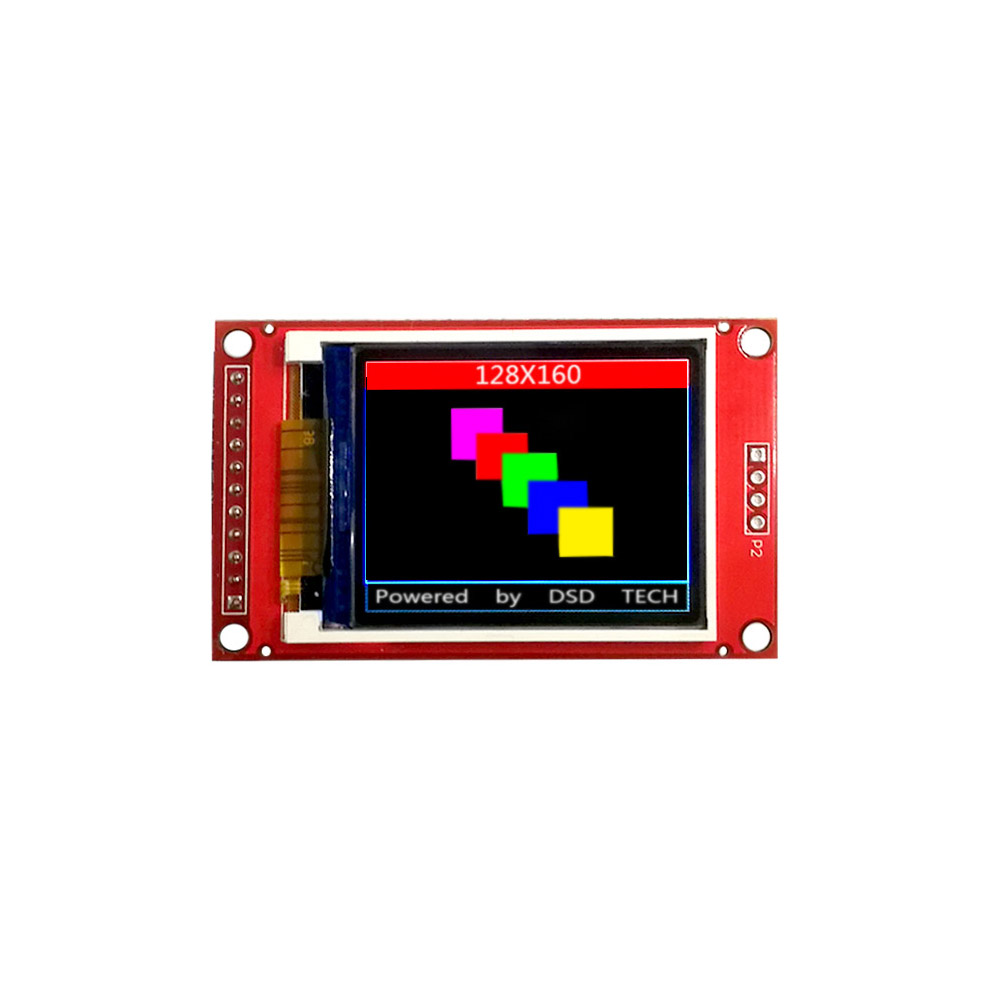

This is a 1.8 inch color screen that can display fullcolors, suitable for electronic enthusiasts and students to use in development boards such as arduino and raspberry pi. The TFT LCD can be directly inserted into arduino, which is convenient and quick. Using SPI communication mode, only 4 IOs are needed to illuminate the display, and the SD card slot is convenient for function expansion.
Specification:
Display Color: 16BIT RGB 65K color
Screen Size: 1.8(inch)
Type: TFT
Driver IC: ST7735S
Resolution: 128*160 (Pixel)

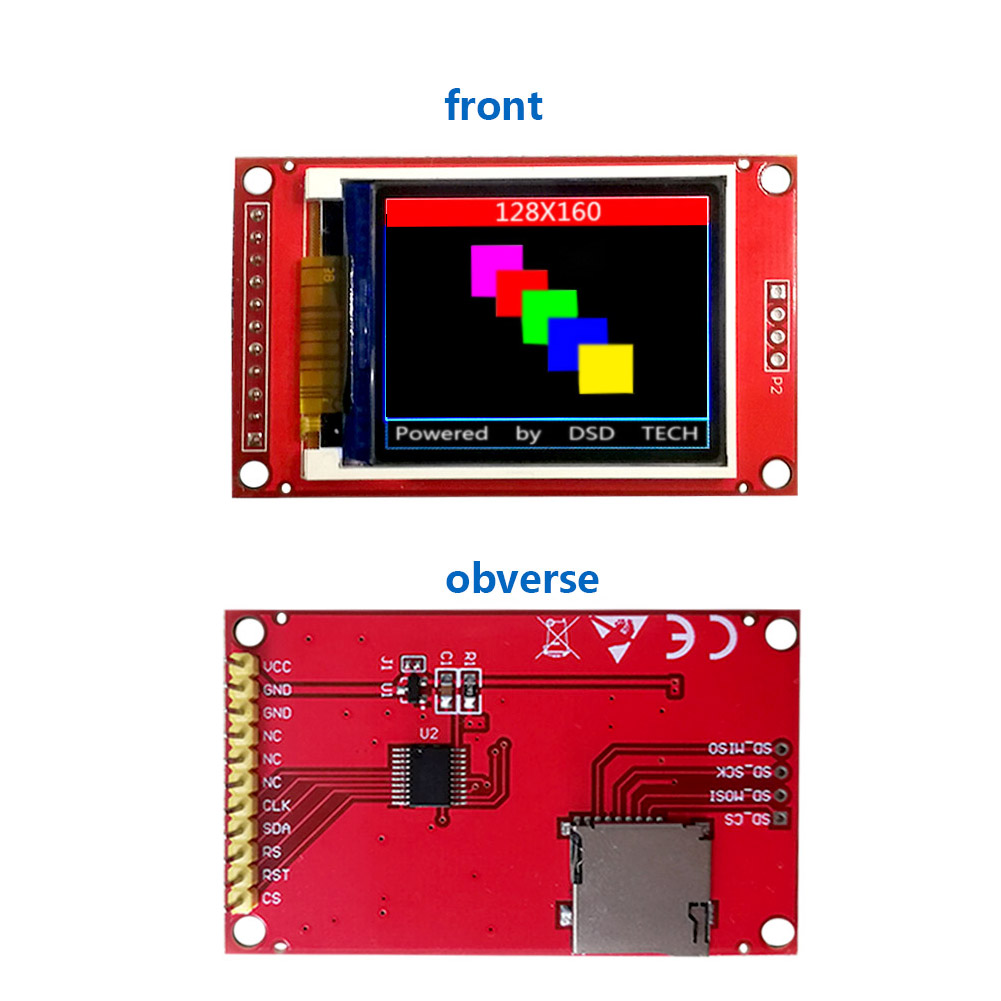

Module Interface: 4-wire SPI interface
Backlight: 2 White Led

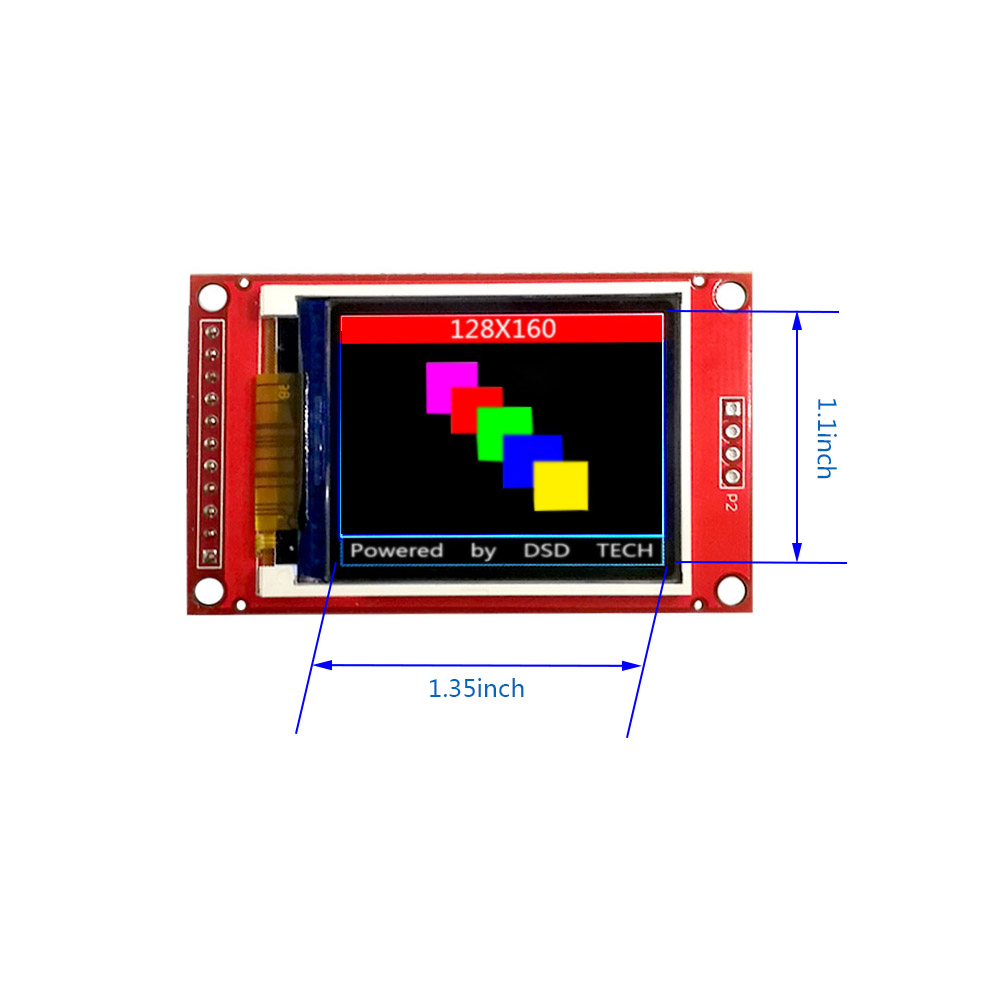

Active Area: 28.03x35.04 (mm)
Module PCB Size: 38.30x62.48 (mm)
Operating Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
Operating Voltage: 5V/3.3V
Rough Weight: 15 (g)

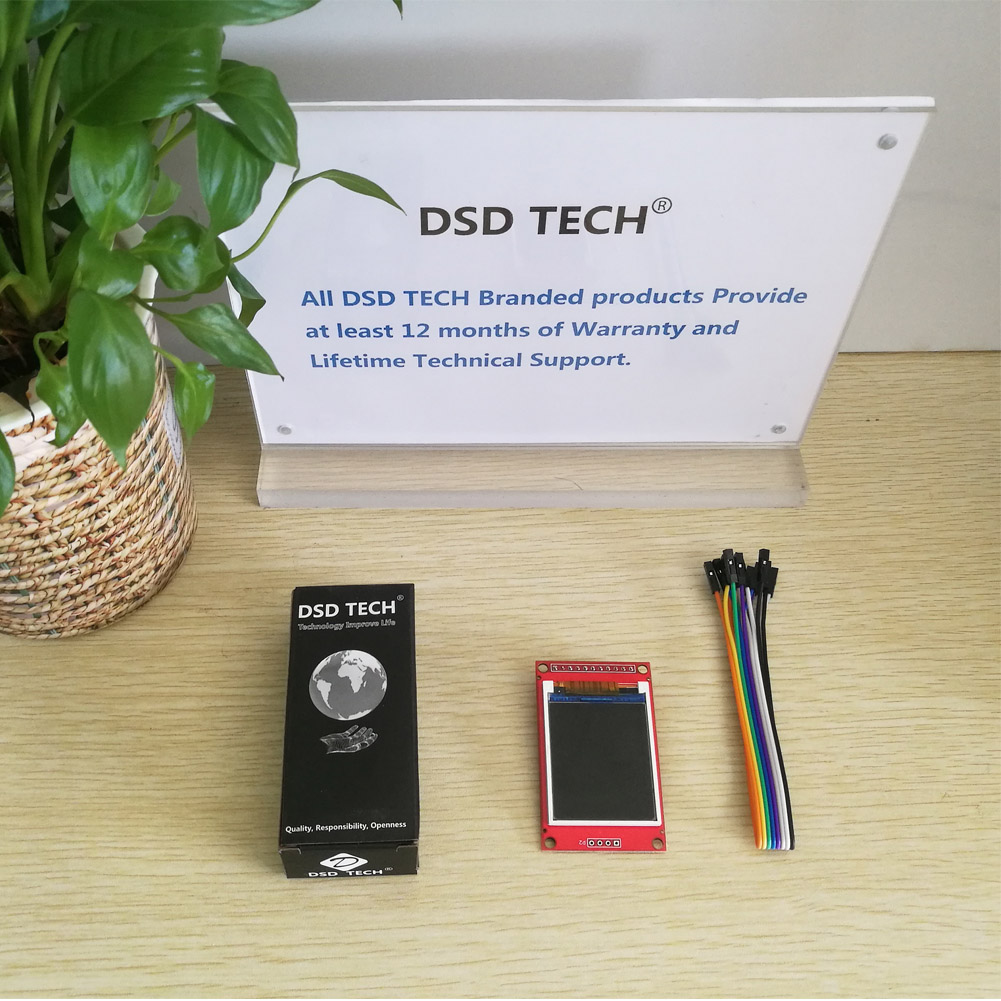

Package list:
TFT LCD Module x1
8 PIN dupont line x1
User Guide x1
