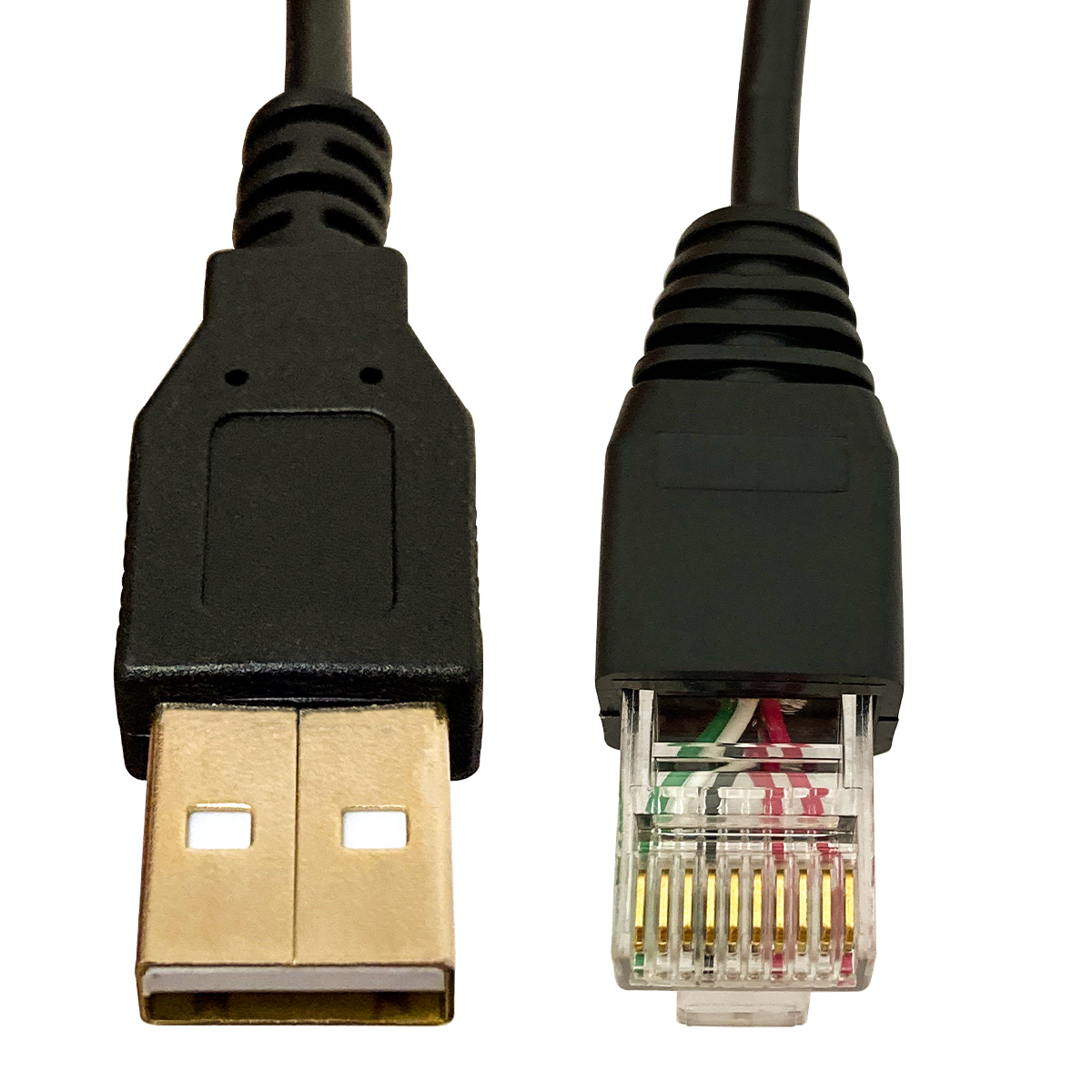

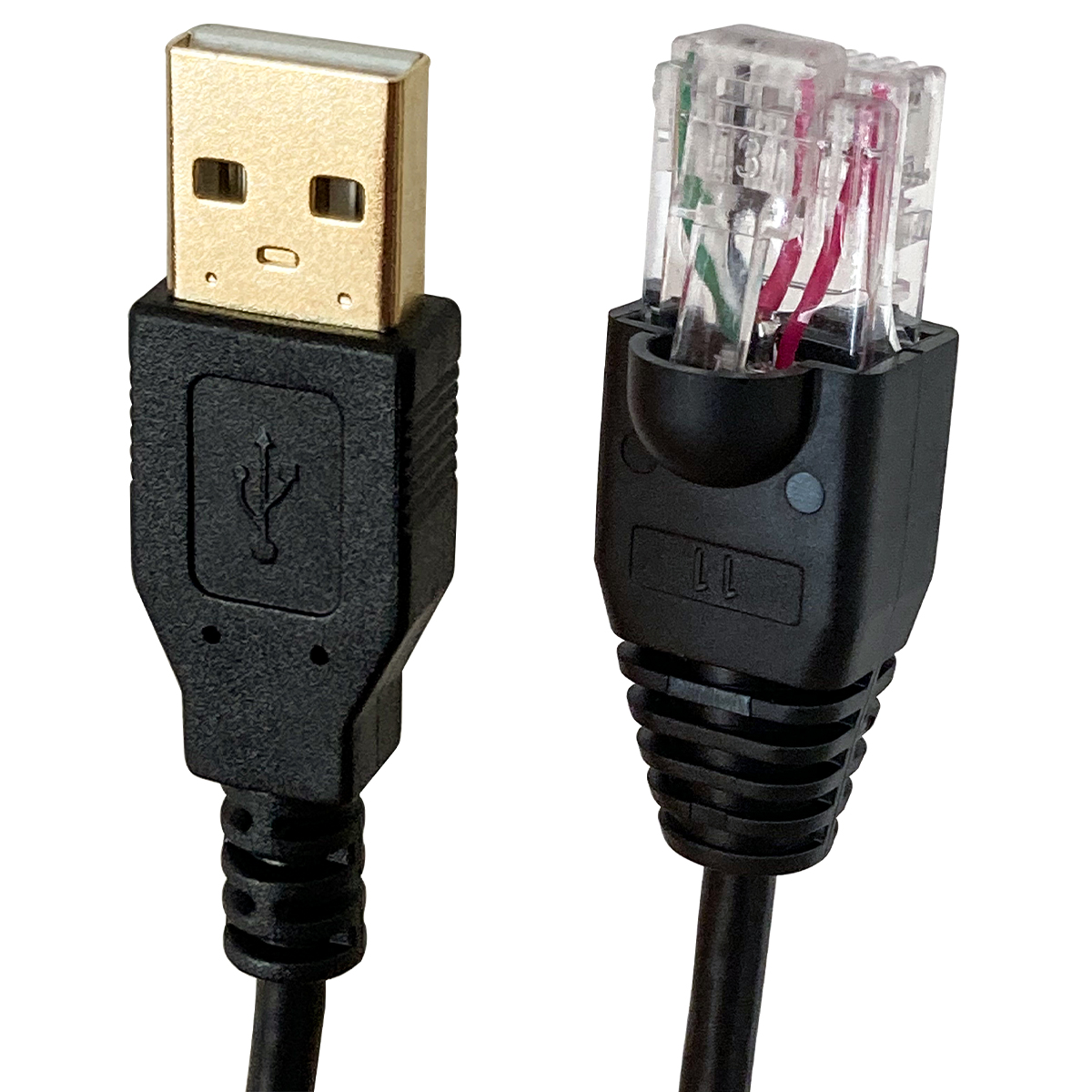

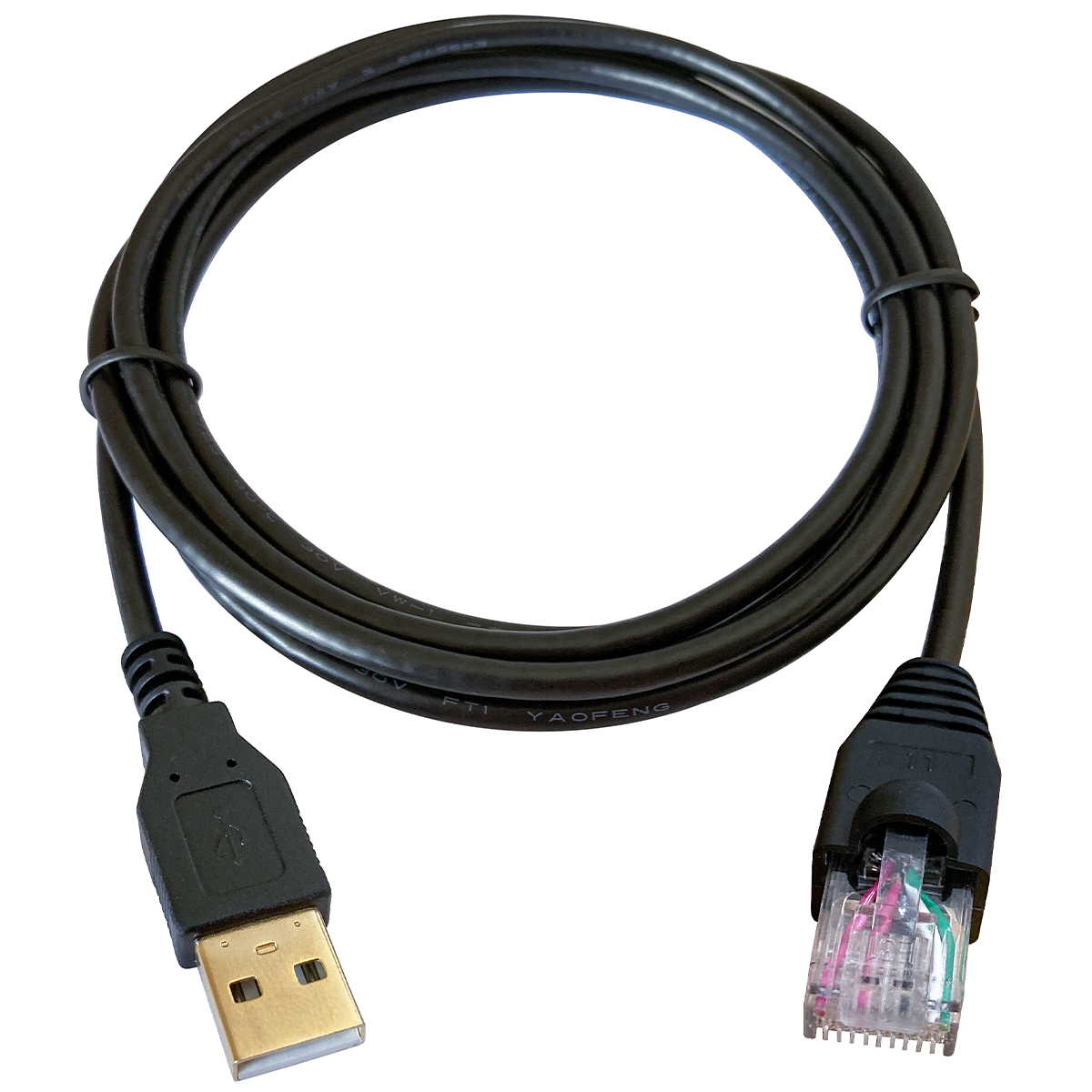

UPS Replacement USB Cable:With this smart UPS USB cable you can communicate with UPS power from a computer, workstation or server. Interface: With 1PCS USB Type A Male Connector and 1PCS 10-pin RJ50 male connector Compatibility: Compatible Replacement for AP9827 and 940-127B, C and E,Cost effective replacement data cable for APC Smart UPS devices
Technical Support & File
SH-RJ50A is a smart UPS USB cable, through this cable you can communicate with UPS power from a computer, workstation or server.
A cost-effective USB data cable suitable for APC Smart UPS devices. It is the best alternative to AP9827 and 940-0127B, 940-0127C and 940-0127E.
Specification:
Model: SH-RJ50A

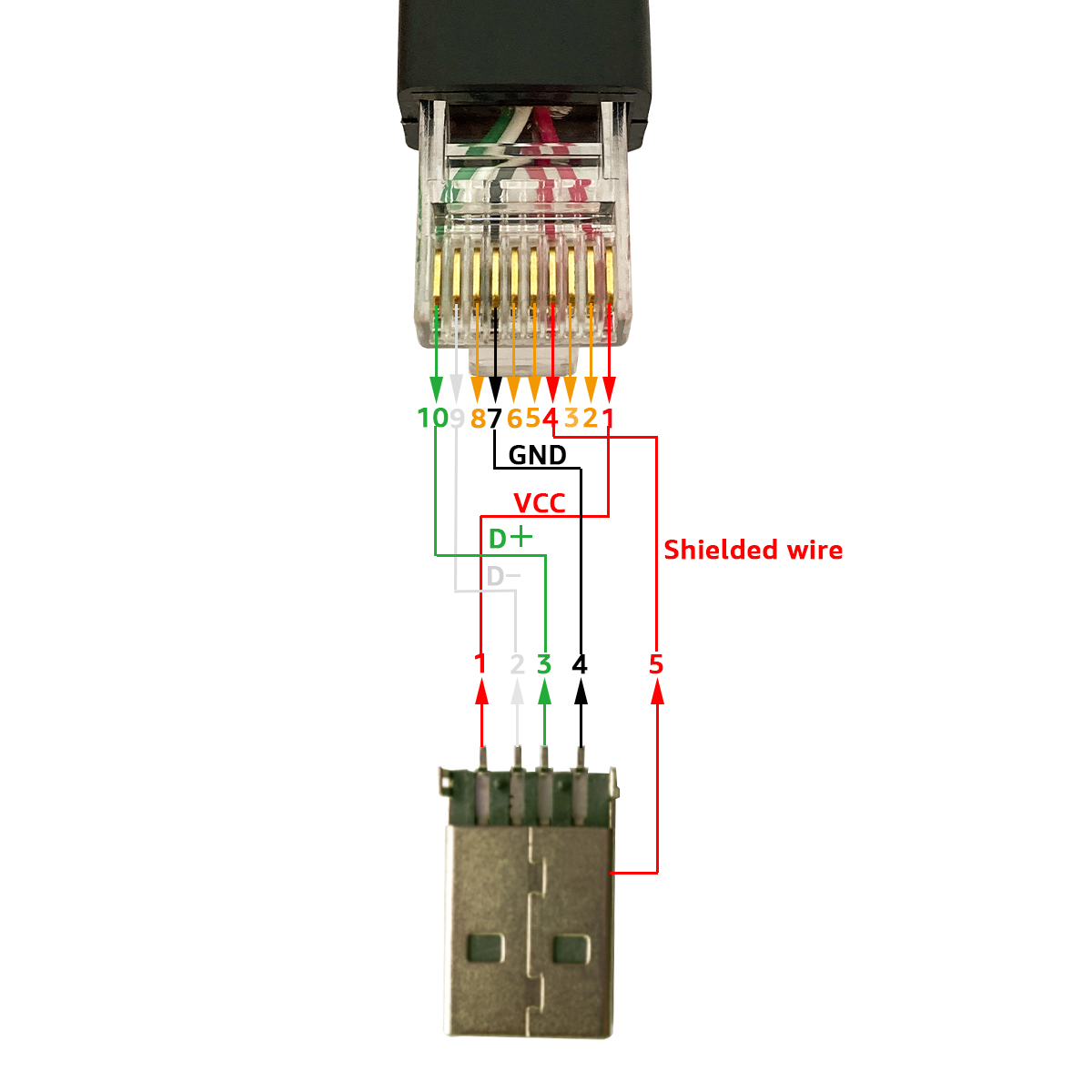

Pin Definition: USB D+, USB D-, GND,VCC(5V)
Communication protocol: USB 2.0/1.1
Connectors: USB Type A, RJ50
Cable Lenght: 1.8M(5.9 FT)/3M(10FT)
Application:
Provides communication from your PC, server or work station to your UPS power supply.
Compatible with:
APC Back-UPS CS BK350/BK500/BK500BLK/BK650EI
APC Back-UPS ES G BE450G/BE550G/BE650G/BE650R/ BE750G
APC Back-UPS ES U Series/APC Back-UPS Office BF350U
APC Back-UPS RS/APC Back-UPS VS BF500BB and other UPS equipment.
Packing list:
1 X SH-RJ50A UPS Replacement USB Cable(5.9 Feet)
1 X User Manual
Technical Support & File
SH-RJ50A is a smart UPS USB cable, through this cable you can communicate with UPS power from a computer, workstation or server.
A cost-effective USB data cable suitable for APC Smart UPS devices. It is the best alternative to AP9827 and 940-0127B, 940-0127C and 940-0127E.
Specification:
Model: SH-RJ50A
Pin Definition: USB D+, USB D-, GND,VCC(5V)
Communication protocol: USB 2.0/1.1
Connectors: USB Type A, RJ50
Cable Lenght: 1.8M(5.9 FT)/3M(10FT)
Application:
Provides communication from your PC, server or work station to your UPS power supply.
Compatible with:
APC Back-UPS CS BK350/BK500/BK500BLK/BK650EI
APC Back-UPS ES G BE450G/BE550G/BE650G/BE650R/ BE750G
APC Back-UPS ES U Series/APC Back-UPS Office BF350U
APC Back-UPS RS/APC Back-UPS VS BF500BB and other UPS equipment.
Packing list:
1 X SH-RJ50A UPS Replacement USB Cable(5.9 Feet)
1 X User Manual
