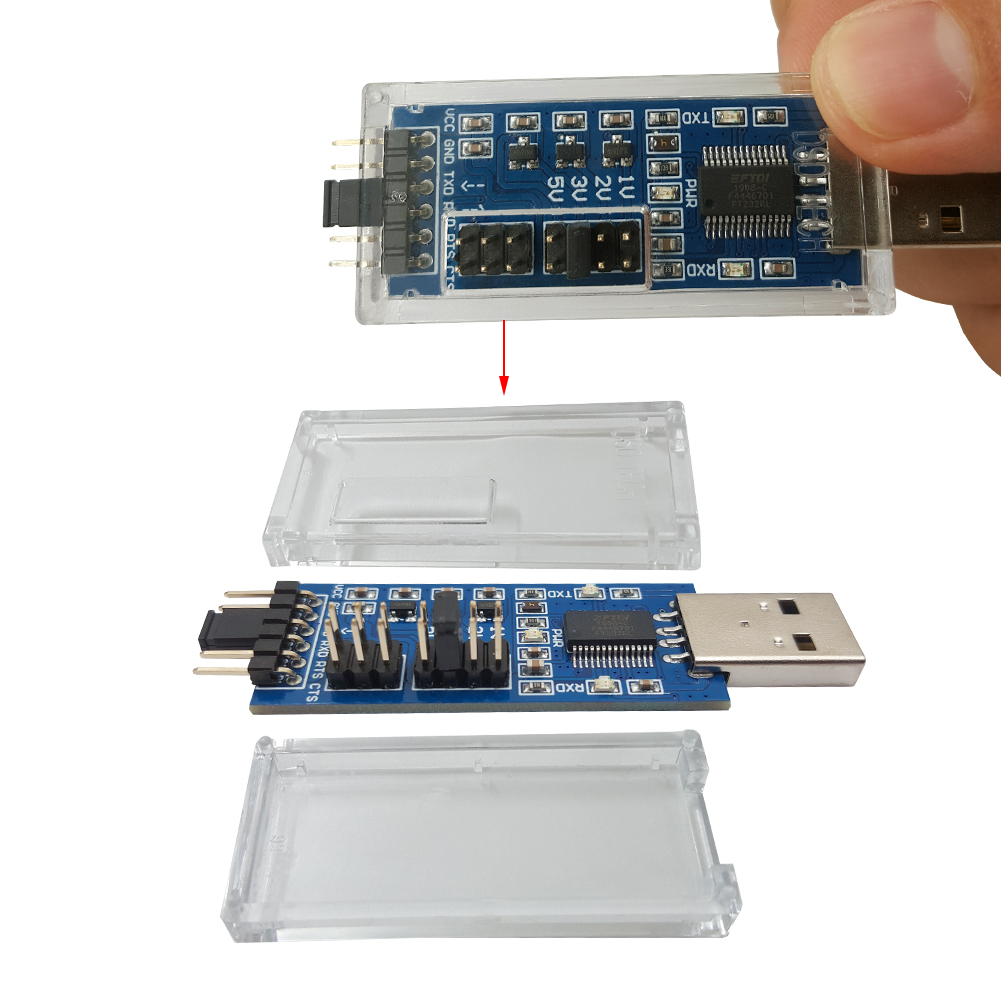

Support 4 kinds of TTL levels:This is a versatile USB to TTL converter. It is powerful enough to handle almost all TTL level communications. It is compatible with 5V, 3.3V, 2.5V, 1.8V TTL levels. FTDI FT232RL Chip:Built-in original FTDI FT232RL Chip.The DSD TECH brand never uses cheap fake chips. Not only provides access to UART Transmit (Tx), Receive (Rx), RTS#, CTS#, VCC and GND pins,but also provides access to DSR,R1,DCD,DTR,RESET pins Protective case: Come with a protective case, this transparent protective case can effectively prevent static interference from the hand and prevent accidental short circuit.
Technical Support & File：
Specification:
Model: SH-U09C5
Main chip: FTDI FT232RL
Pin Definition: CTS,RTS,RXD,TXD,GND,VCC,DSR,R1,DCD,DTR,RESET
Output VCC: 1.8V/2.5V/3.3V/5V
TTL Level: 1.8V/2.5V/3.3V/5V
USB interface: 2.0
The maximum speed: 3Mbps
About indicator LED:
PWM LED:Power Indicator
RXD LED:The data transmission indicator flashes when there is data from the USB port.
TXD LED:The data receiving indicator flashes when the USB port receives data.
List of supported systems
1,Windows xp,7,8,10
2,Ubuntu 11.10, kernel 3.0.0-19
3,Mac OS X 10.3 to 10.8 (32 &64 bit)
4,Mac OS X 10.9 and above(64 bit)
You can download the driver directly from FTDI's website
Packing list:
1 X FTDI FT232RL SH-U09C5 USB to TTL Adapter with a plastic case
1 X User Manual
1 X 4 PIN DuPont cable
