SH-U09C3 USB to TTL Adapter

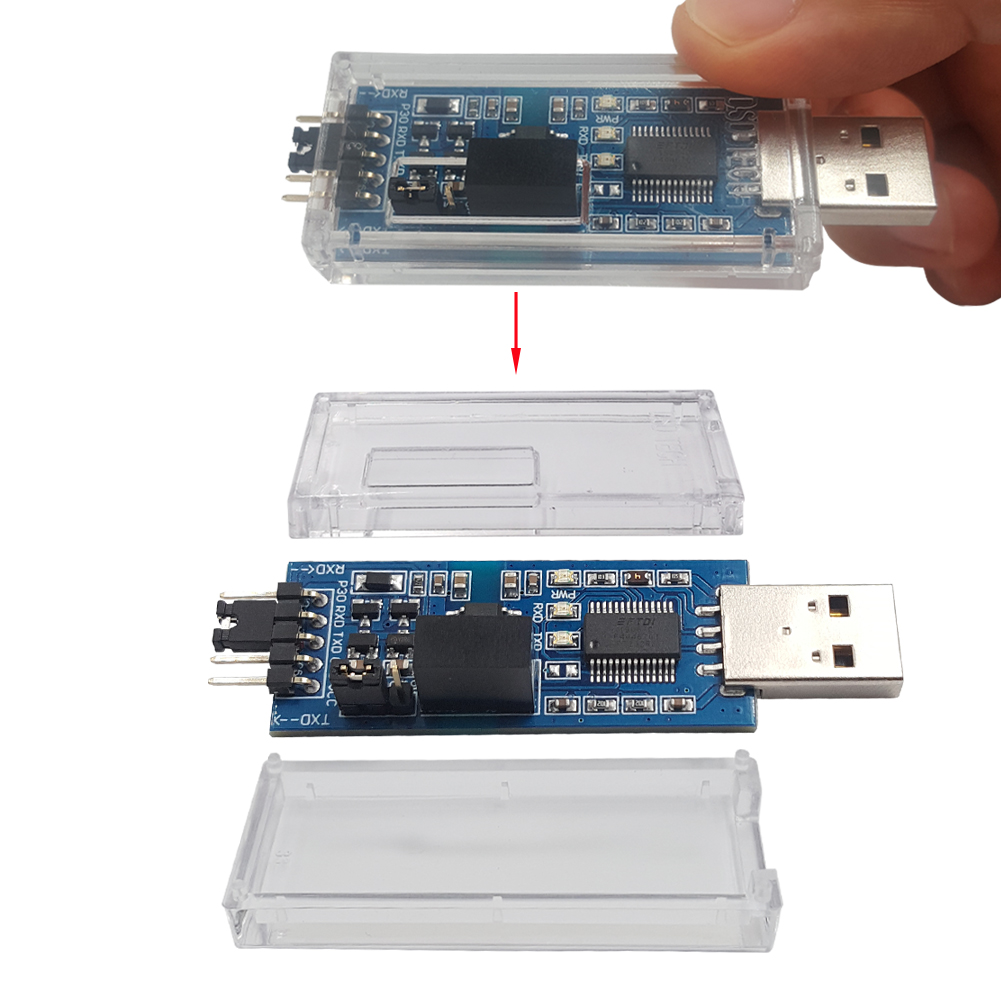

Industrial-grade USB isolation module: ADI\\\\\\\\\\\\\\\'s iCoupler signal isolation technology is used to fully protect the computer\\\\\\\\\\\\\\\'s USB port from external short-circuit, shock and other damage. The main chip is FT232RL from FTDI ,High stability. LED indicator for TX,RX,Power,It is very useful when you are debugging or downloading. Protective case: We have installed a protective case for this isolated USB to TTL Converter, which prevents your hands from directly touching the PCB and IC. Both 3.3V and 5V Logic TTL are supported. You can switch by jumper.

Recommend
  • About this
  • Technical Support & File:


    1, Support File


    Precautions:
    This isolated USB to TTL adapter does not have 2 pins for RTS and CTS. So if you need to use these 2 pins, please do not buy this adapter.

    Specification:
    Model: SH-U09C3
    Main chip: FTDI FT232RL
    Isolation voltage: 1500VDC voltage isolation, with continuous short circuit protection

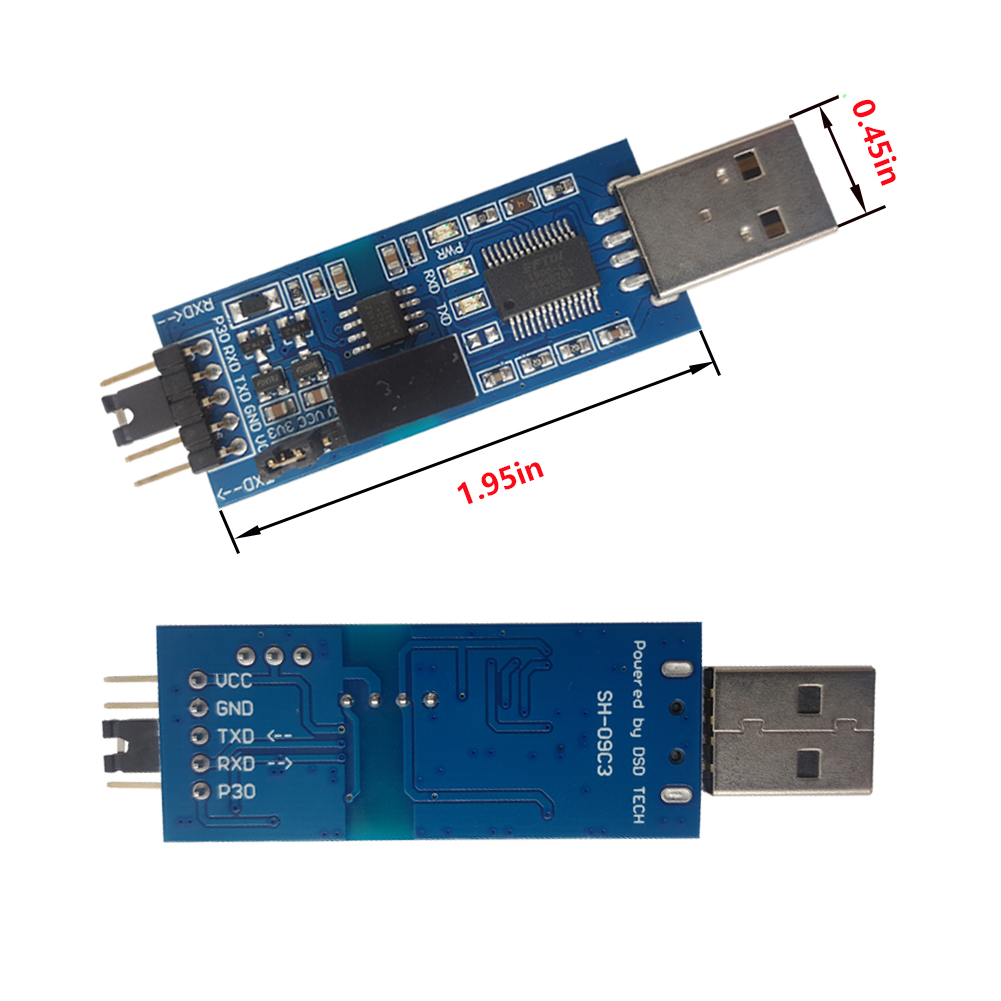

    Pin Definition: RXD,TXD,GND,VCC,P30(P30 is only for STC MCU)
    TTL Level: 3.3V or 5V
    USB interface: 2.0
    The maximum speed: 3Mbps

    About indicator LED:
    PWM LED:Power Indicator
    RXD LED:The data transmission indicator flashes when there is data from the USB port.
    TXD LED:The data receiving indicator flashes when the USB port receives data.

    List of supported systems
    1,Windows XP,7,8,10
    2,Ubuntu 11.10, kernel 3.0.0-19 or above
    3,Mac OS X 10.3 to 10.8 (32 &64 bit)
    4,Mac OS X 10.9 and above(64 bit)
    5,Windows CE 4.2-5.2 6.0/7.0 and Windows CE 2013
    You can download the driver directly from FTDI's website

    Works with software
    HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc.

    Packing list:
    1 X Isolated USB to TTL Adapter
    1 X User Manual
    1 X 4 PIN DuPont Cable
