USB to 5V TTL :Please note that this is not a USB to RS232 DB9 adapter, it is a USB to 5.0V TTL adapter. TX, RX are 5V TTL levels, not RS232 signals. Female 90 degree DB9 Port:It is more tightly connected to some DB9 male Port. 5V TTL data signals: TxD, RxD, RTS, CTS, GND. Please note that this cable does not have DSR, DTR, DCD, RI signals. Built-in FTDI FT232RL chip. Maximum speed can reach 3 Mbps.Its length is 1.8M / 5.9 feet. Compatibility: Works with Windows 10, 7(32/64bit) , XP, 2003,Liunx,Mac OS ,etc.
Pay Attention:
This is not a USB to RS232 DB9 adapter, it is a USB to 5.0V TTL adapter. TX, RX are 5V TTL levels, not RS232 signals.
Specification:
Model:SH-RS232C
Main chip: FTDI FT232RL
Connectors: USB Type A, DB9 Female;
TTL signals: TxD, RxD, RTS, CTS,GND
TTL Level: 5V
The maximum speed: 3Mbps

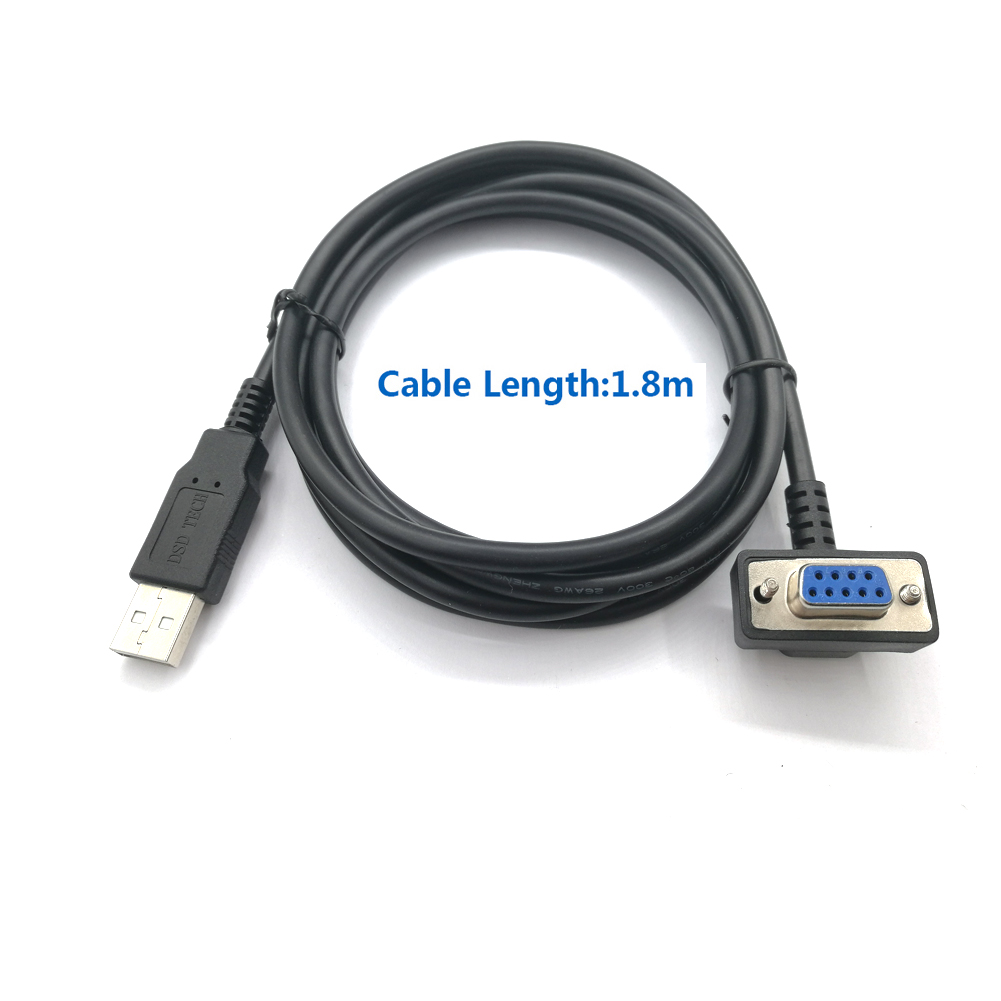

Cable Lenght: 1.8M/5.9 FT
Powered by USB port, no external power adapter required.
Plug & Play after one time driver installation;
List of supported systems:
1,Windows 7,8,10
2,Linux kernels 2.4.31 and later.
3,Mac OS X 10.6 and above(64 bit)
You can also download the driver directly from FTDI's website
Works with software
HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc.
Package Content
1 x SH-RS232C Female Serial Cable
1 x Driver CD
1 x User guide
