SH-U09C2 USB to TTL Adapter

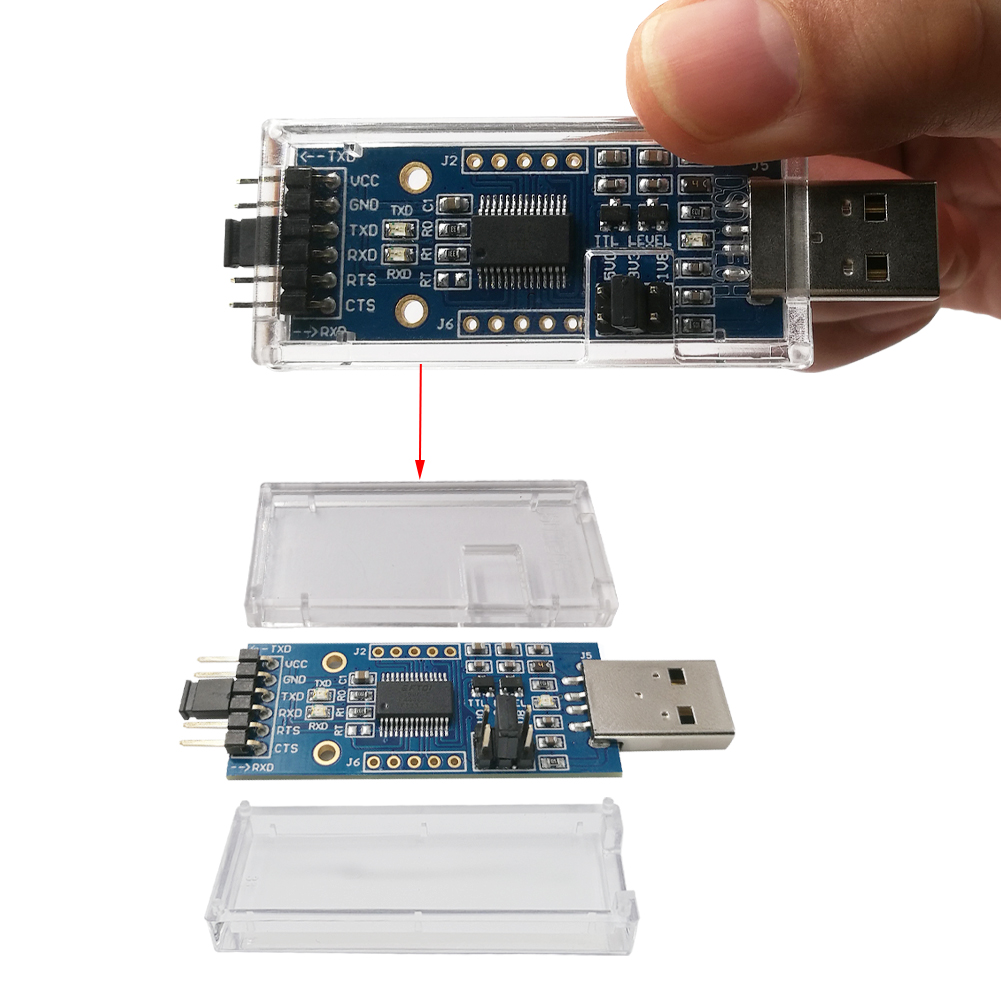

FTDI FT232RL IC:Built-in original FTDI FT232RL IC. Supports 5V, 3.3V and 1.8V Logic TTL levels,You can switch Logic levels by jumper. Protective case: Come with a transparent protective casing, this transparent protective casing to effectively prevent static interference from the hand and prevent unintentional short circuit. Application:Support EEPROM, Vendor ID re-write, unbrick routers ,program ESP8266 module, interface to GPS modules, flash firmware on hard drive, update transmitter, interface to set top box and other compatible UART interface devices Compatibility: This USB to TTL adapter is compatible with Windows 7, 8, 10 and various Linux OS and Mac OS

Recommend
  • About this
  • Technical Support & File:


    1, Support File




    Specification:
    Model: SH-U09C2
    Main chip: FTDI FT232RL

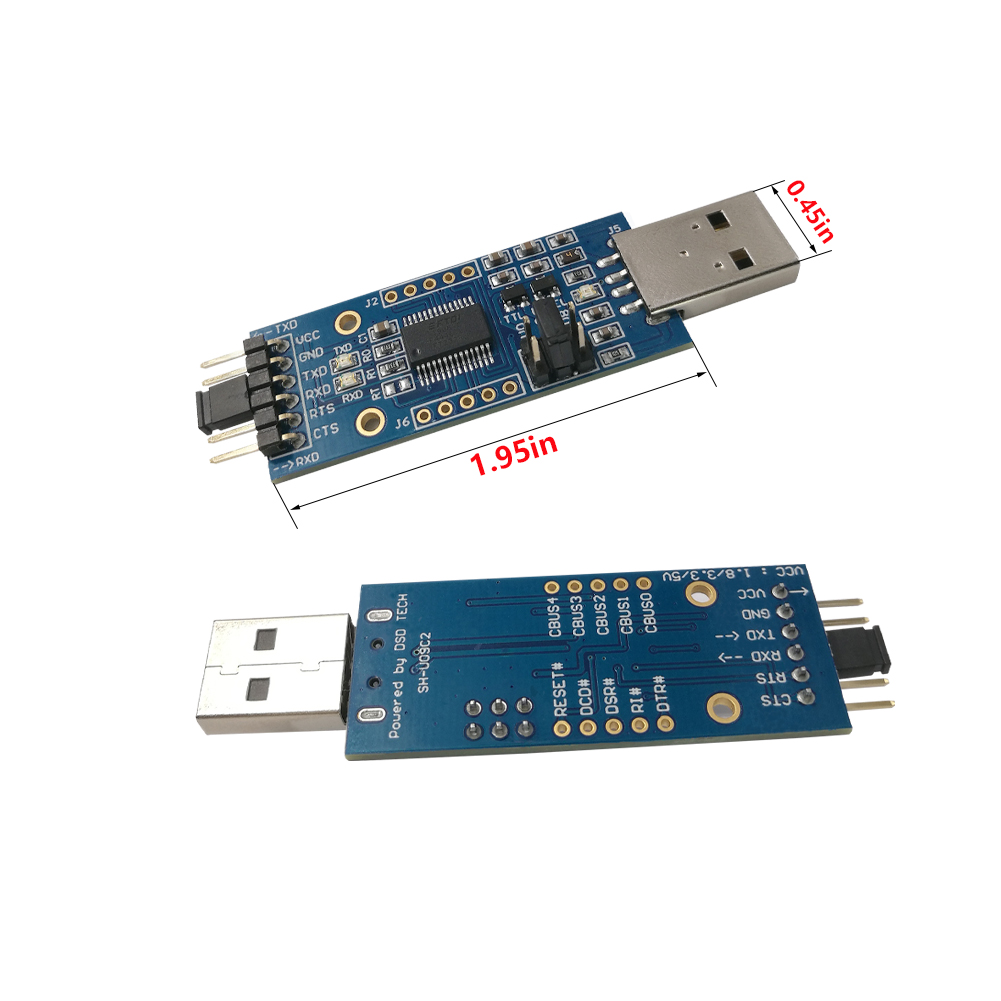

    Pin Definition: CTS,RTS,RXD,TXD,GND,VCC
    Output VCC: 1.8V/3.3V/5V
    TTL Level: 1.8V/3.3V/5V
    USB interface: 2.0
    The maximum speed: 3Mbps

    About indicator LED:
    PWM LED:Power Indicator
    RXD LED:The data transmission indicator flashes when there is data from the USB port.
    TXD LED:The data receiving indicator flashes when the USB port receives data.

    List of supported systems
    1,Windows xp,7,8,10
    2,Ubuntu 11.10, kernel 3.0.0-19
    3,Mac OS X 10.3 to 10.8 (32 &64 bit)
    4,Mac OS X 10.9 and above(64 bit)
    You can download the driver directly from FTDI's website

    Packing list:
    1 X FTDI FT232RL USB to TTL Adapter with a plastic shell
    1 X User Manual
    1 X 4 PIN DuPont cable
