SH-U11F USB to RS485/RS422 Adapter

Industrial-grade :The built-in isolated power supply and ADI signal isolation chip can effectively protect computer damage caused by accidental short circuit, electric shock and other damage. USB to RS485/RS422:Support RS-422 (RxD+, RxD-, TxD+, TxD-, GND) and RS-485(A+, B-, GND) Interface. High stability: Built-in original FTDI FT232RL chip,Maximum speed up to 3Mbps Compatibility: Works with Windows 10, 7(32/64bit) , XP, 2003,Liunx,Mac OS Etc.

Recommend
  • About this
  • Technical Support & File:


    1, Support File




    Specification:
    Model NO: SH-U11F
    Standard : RS485/RS422

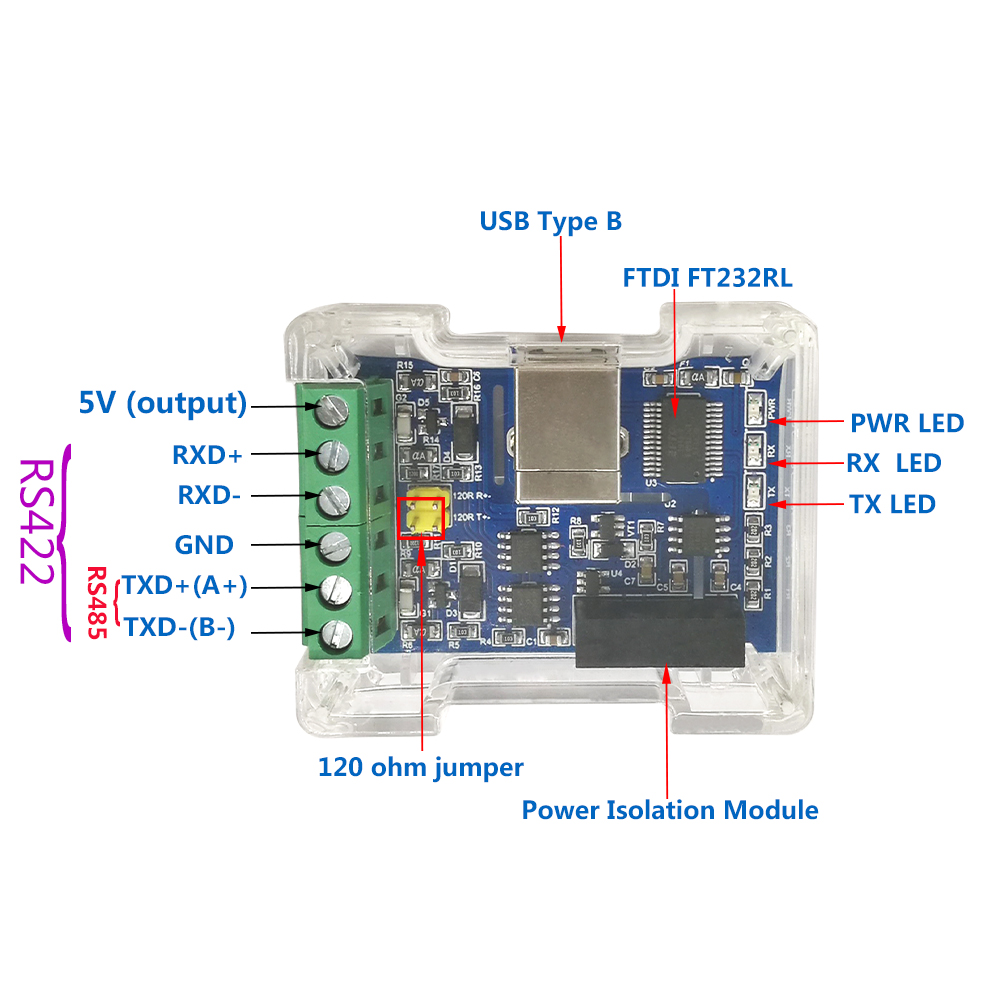

    Main chip: FTDI FT232RL

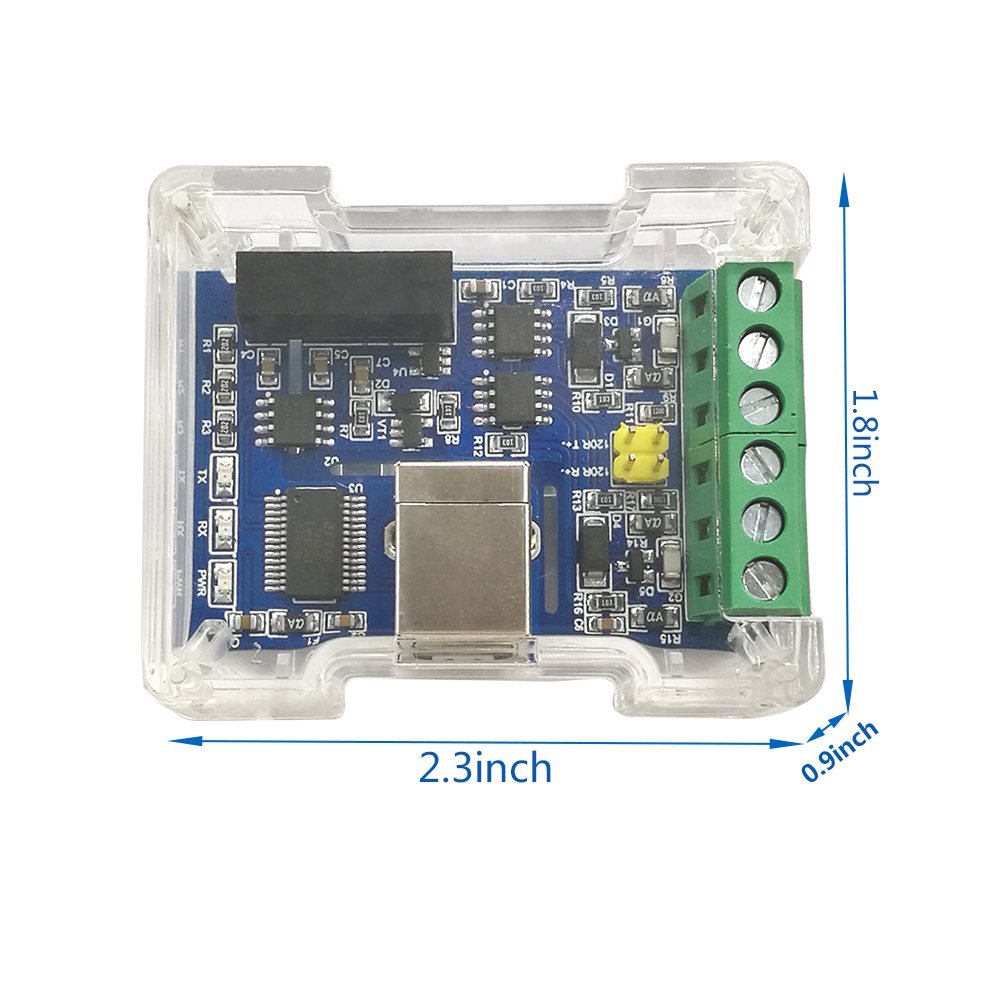

    Interface: USB Type B ,6 PIN Terminal Block
    Cable Length: 1.0M/3.2FT
    RS485 PIN: TXD+(A+), TXD-(B-)

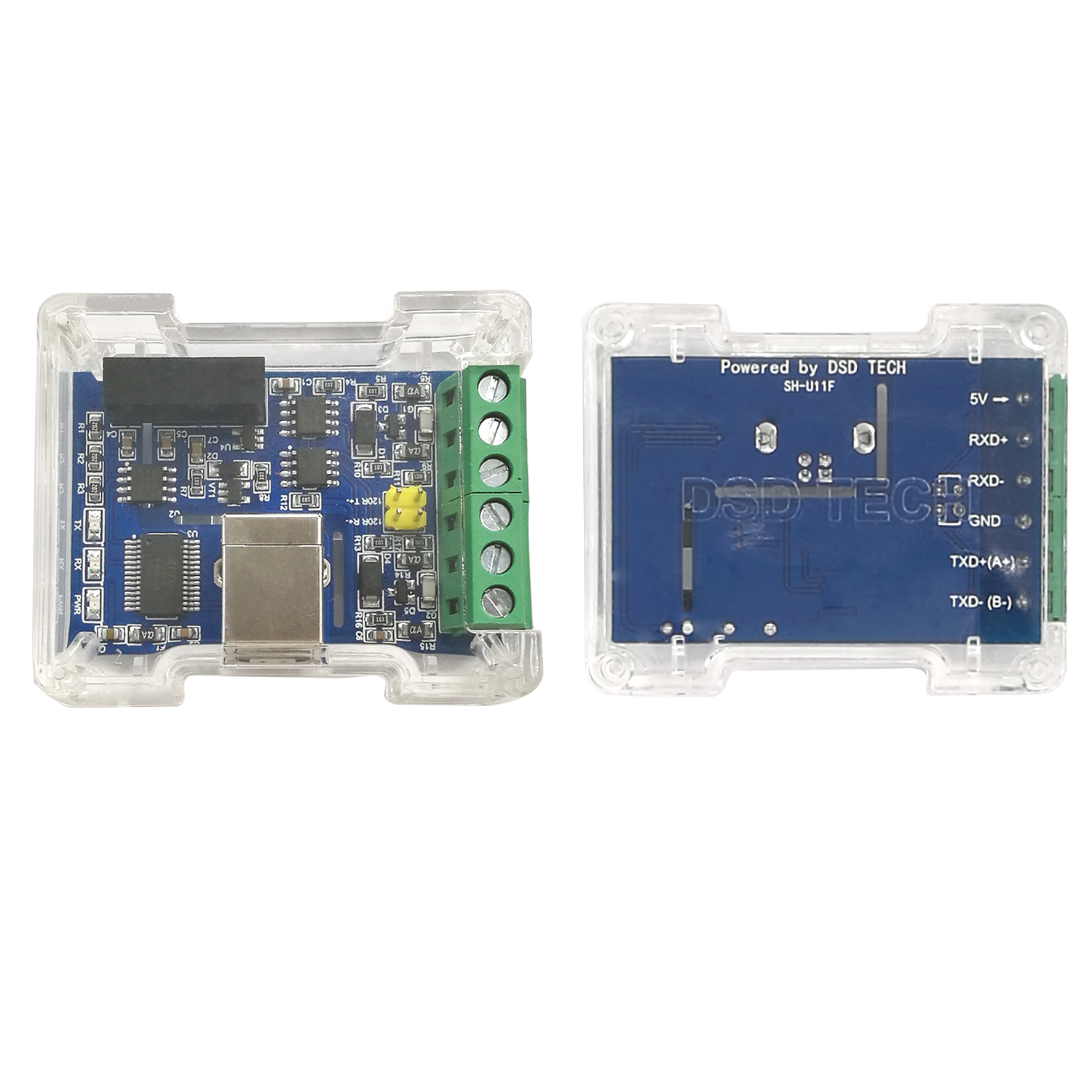

    RS422 PIN: RxD+, RxD-, TxD+, TxD-, GND
    USB 2.0; compatible USB 1.1
    Baud rate: 300bps to 3Mbps

    APPLICATION
    LED display communication data; machine PLC data read, write, and PTZ control; Centralized control of household electrical appliances; access control systems; variety of industrial automation; instrumentation; employee attendance machine; highway toll station; ATM machine.

    List of supported systems
    1,Windows XP,7,8,10
    2,Ubuntu 11.10, kernel 3.0.0-19
    3,Mac OS X 10.3 to 10.8 (32 &64 bit)
    4,Mac OS X 10.9 and above(64 bit)

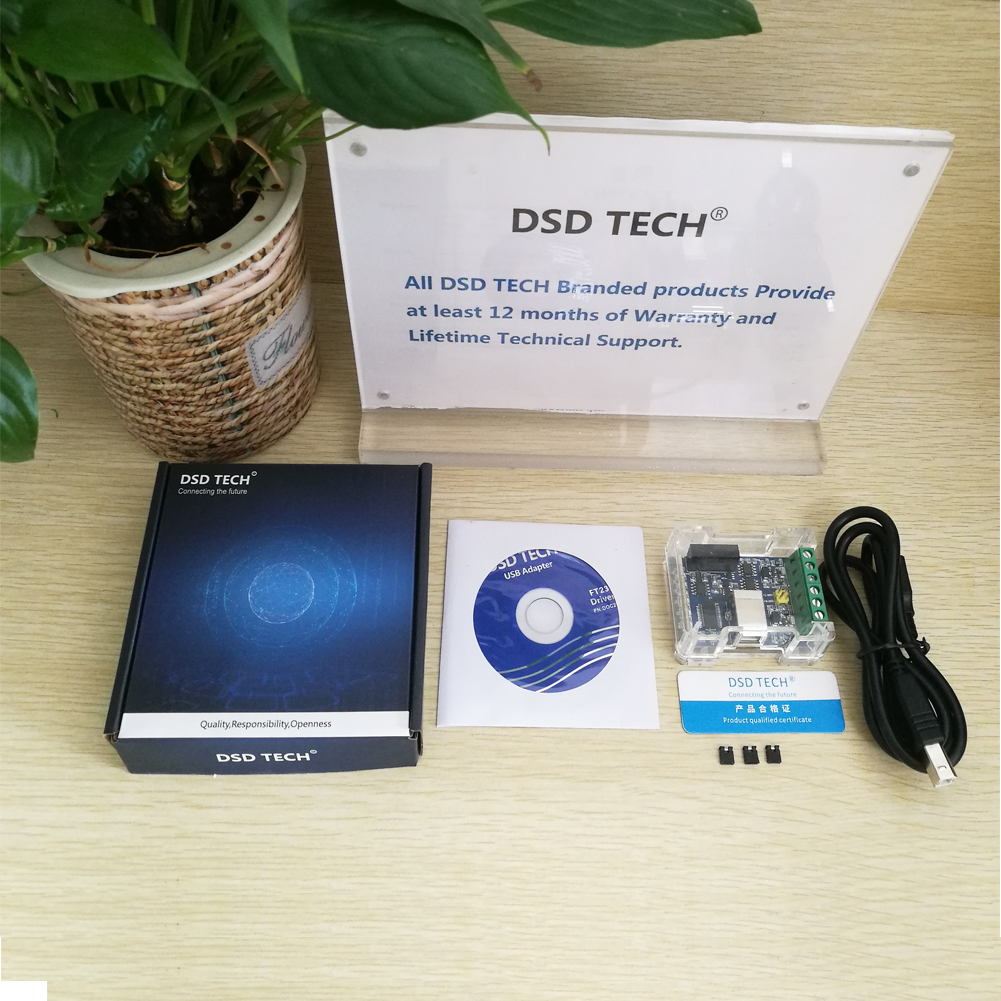

    Packing list:
    1 X SH-U11F USB to RS485/RS422 Adapter
    1 X User manual
    1 X CD Driver
    1 X USB Type B Cable(1M/3.2FT)
