DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan. USB to RJ12/RJ11: RJ12 and RJ11 are the same on the physical interface. The difference is that RJ12 uses 6 data lines, while RJ11 uses 4 data lines.This cable leads to 4 signals: GND, Tx, RX, GND. Silicon Labs CP2102N:CP2102N is an upgraded version of CP2102 chip, with the same high performance and compatibility as FTDI FT232RL. Compatibility: This cable is compatible with Windows 7, 8, 10 and various Linux OS and Mac OS
Technical Support & File：
Specification:
Model: SH-RJ12B
Main chip: Silicon Labs CP2102N
Pin Definition: Gnd,Tx,Rx,Gnd
Communication protocol: RS232
Connectors: USB Type A, RJ12/RJ11 (6P4C)
The maximum speed: 2 Mbps

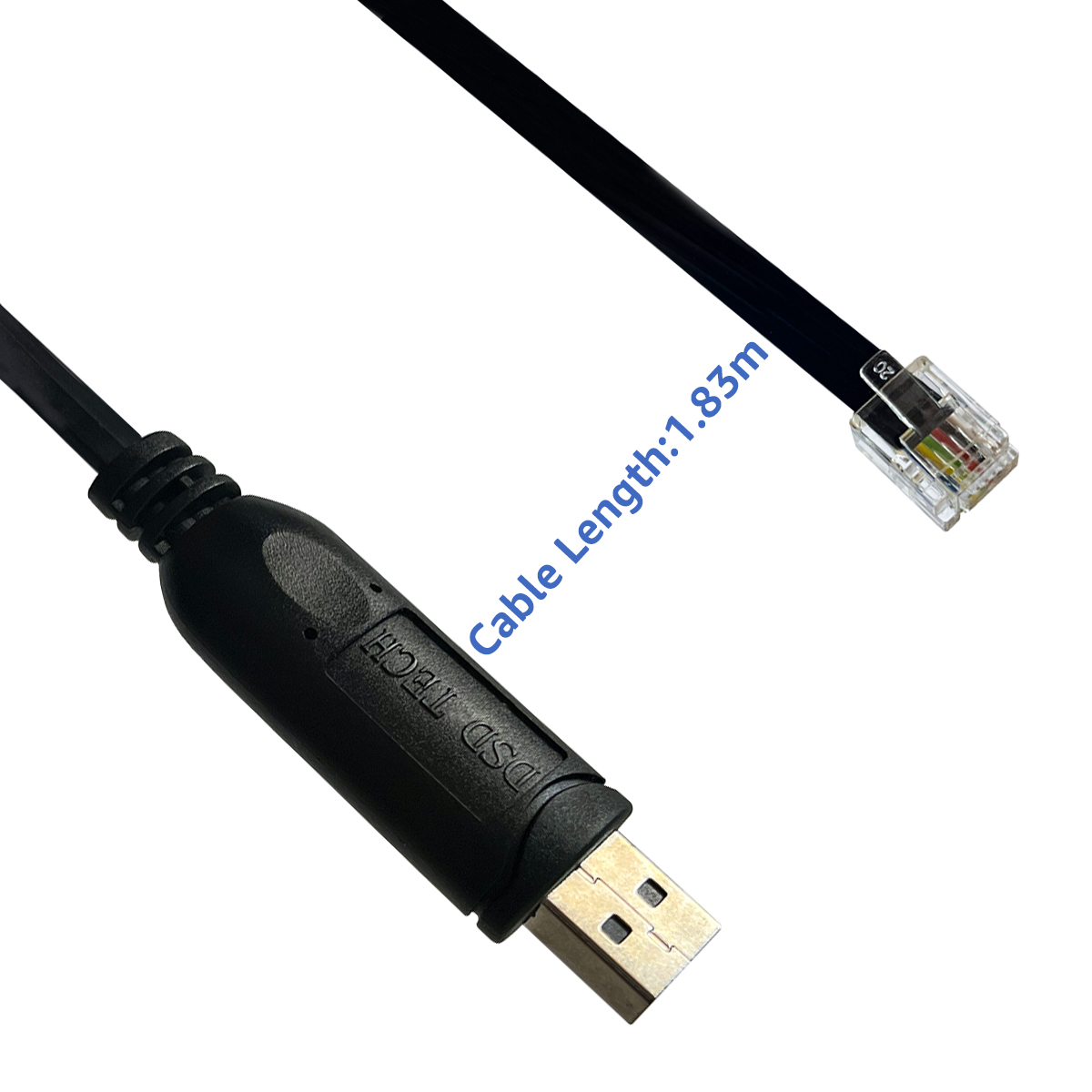

Cable Lenght: 1.8M/5.9 FT
Plug & Play after one time driver installation;
Precautions:

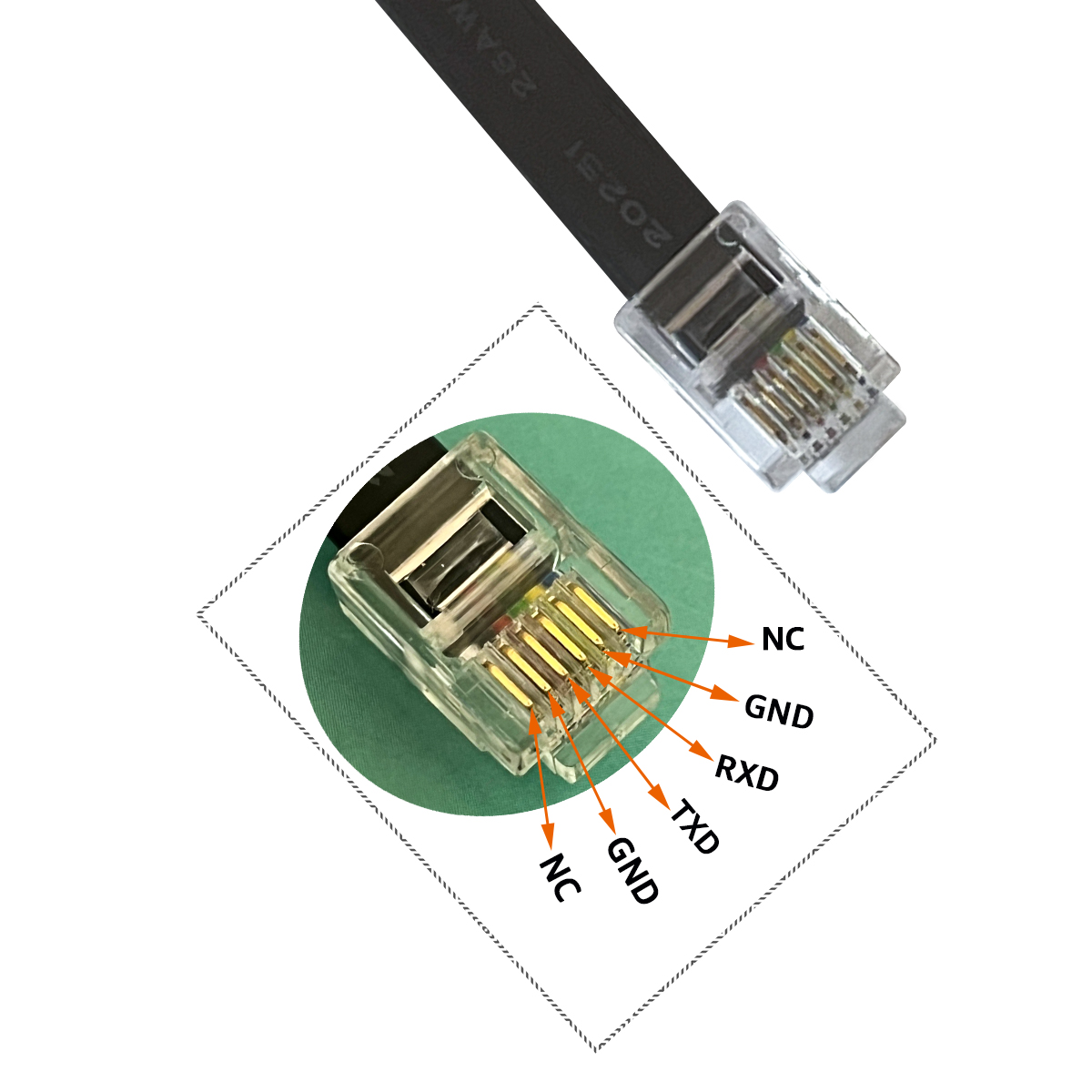

Although this data cable can transmit RS232 signals, it may not be compatible with your device. Because the line sequence of this data line is: NULL, Gnd, Tx, Rx, GND, NULL (please refer to the picture)
Different devices have different requirements for compatible data lines. You can adjust it manually or contact us for customization.
List of supported systems:
1,Windows 7,8,10
2, various Linux OS and Mac OS
Packing list:
1 X SH-RJ12 USB to RJ12/RJ11 Serial Cable(5.9 Feet)
1 X User Manual
