Built-in B2541 Bluetooth 4.0 BLE module, compatible with iOS devices and Android 4.3 or above. 1 x 12V Relay The operating voltage is DC 12V. Free app for Android, search "DSD TECH Bluetooth" in Google Play We do not offer an app for iOS. You need to use a generic app such as "lightblue" or "BLE scanner" to control it. DSD TECH offers a warranty for this Bluetooth relay. If you have any questions, please contact us. Compatible devices: air conditioner
Technical Support & File
1,Support document
2.DSD TECH Bluetooth App for iOS Devices and Android
3.DSD TECH Bluetooth Tools for Windows
Specification:

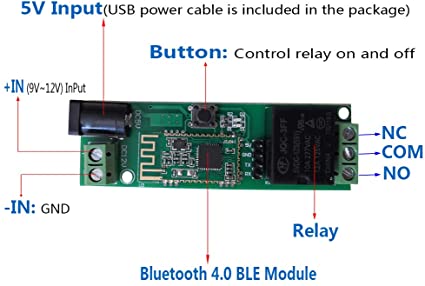

Built-in SH-HC-08 Bluetooth 4.0 BLE module supports iOS devices and Android 4.3 and later devices.
Equipped with 12V, 10 A / 110V-250 V AC; 10 A / 30 VDC relay, the relay has long service life and can absorb 100,000 times continuously.
Diode-protected modules have a short response time.
Bluetooth status indicator (Flash not connected, always on after connection) and relay status indicator.
Control distance up to 10m (open space environment)
Follow the Bluetooth 4.0 specification
Module operating voltage(VCC):DC 12V
DC control maximum voltage: DC 30 v
Switching control maximum voltage: AC 110V-250 v
Size: 20mm * 62mm
About APP:
For Android : please search "DSD TECH Bluetooth" in google play.
Free APP for iOS devices(iPhone), please search "DSD TECH Bluetooth" in the APP Store.
Control instruction(Hexadecimal format):
Channel 1 ON: A00101A2
Channel 1 OFF: A00100A1
Channel 2 ON: A00201A3
Channel 2 OFF: A00200A2
Precautions:
This Bluetooth relay is Bluetooth 4.0 specification and is not compatible with any Bluetooth 2.0 device.
