DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan. MagicConn Series:High reliability, reuse, less waste of resources is the design philosophy of MagicConn. The DSD TECH team will develop over 100 different accessories for MagicConn over the next 10 years. We try to reduce the impact on the earth\\\\\\\'s environment from the perspective of product design to cope with global warming and increasingly serious pollution. PD Sink Chip: Built-in PD smart Sink chip, so that this PD cable can output 20V voltage stably, strong enough to support maximum 3A current, support USB PD fast charging. (Video and data transfer are not supported.) Compatibility: Support 100W 90W 60W 40W and other power supply PD fast charging, used to convert the PD power supply of the type-c interface into a general DC 5.5mm x 2.5mm interface.
Technical Support & File:
Specification:
Model: SH-CP20A
Standard: Type-C 1.4 & USB PD3.0 V1.3

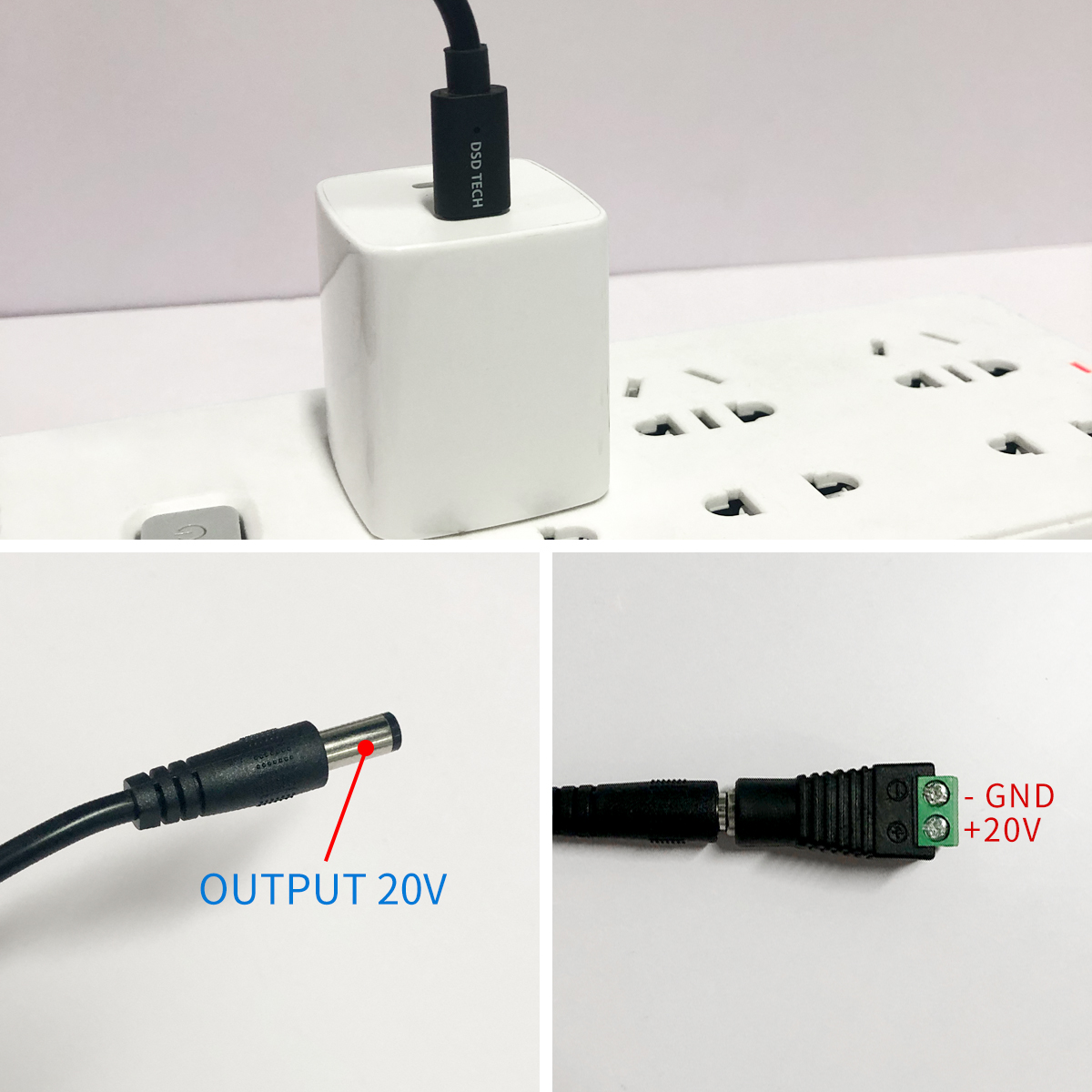

Connectors: USB Type C, DC 5.5mm*2.5mm
Cable Lenght: 1.2M/3.9 FT
Maximum output current:3A
Output : 20V
NOTE:
It does not support bidirectional charging.
The output power depends on your USB PD adapter. If your USB PD power adapter has a maximum output of 20V/2A, the maximum output of this PD power cable is also 20V/2A.
Compatibility:
Support 100W 90W 60W 40W 20W and other power PD fast charge
Packing list:
1 X USB-C PD Cable(3.9 Feet)
1 X User Manual
1 X DC to Terminal block
