SH-S10B USB to DB9 RS232 Adapter

USB to Serial RS232 Adapter:Add an RS232 Serial DB9 Male Port to your PC/laptop/mac via USB.full RS-232 modem control signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND. Tx, Rx signal indicator: Built-in signal indicator, you can clearly understand whether your serial adapter is reading data or writing data. Compatibility: This USB to Serial cable is compatible with Windows 7, 8, 10 and various Linux OS and Mac OS

Recommend
  • About this

  • Technical Support & File


    1,Support document

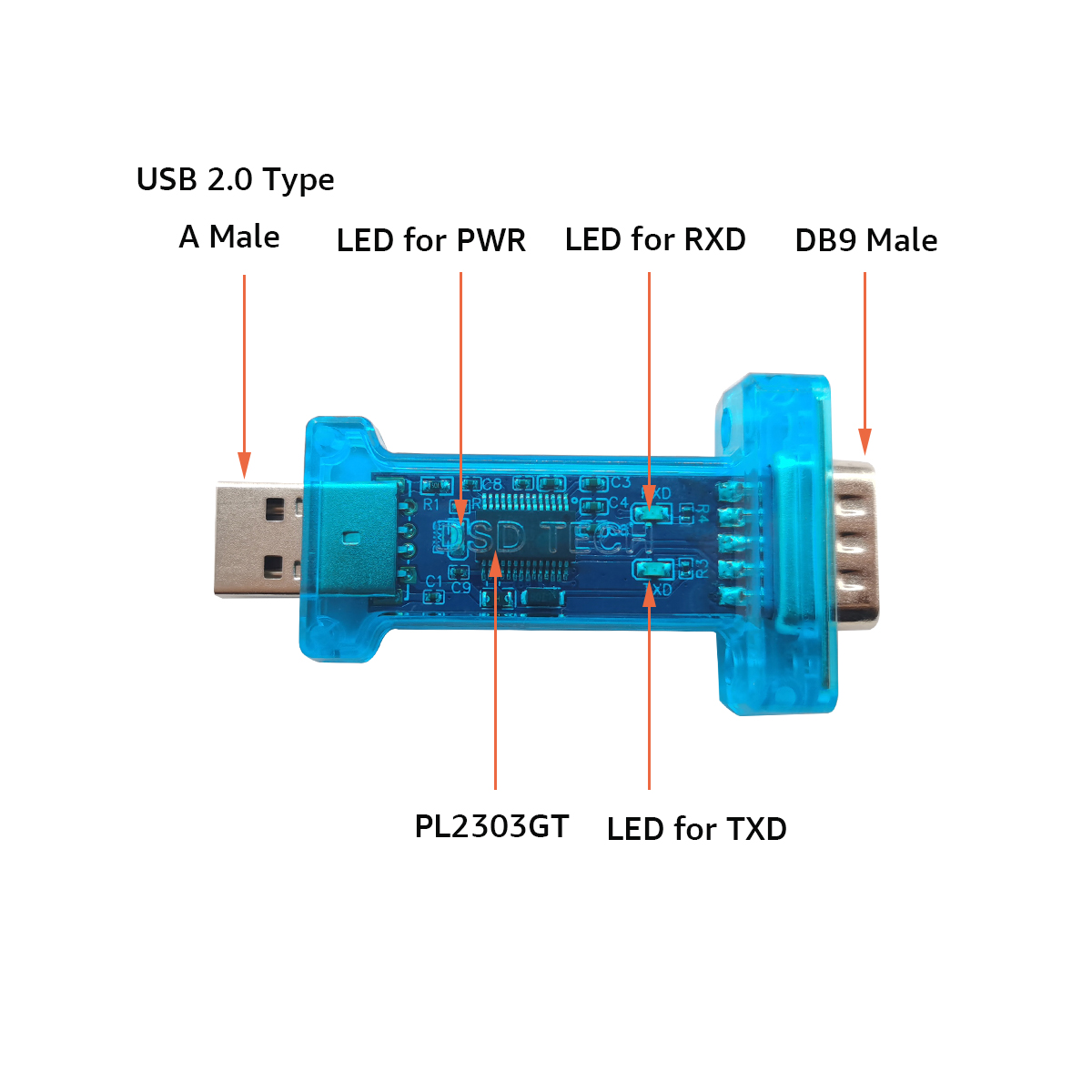

    Specification:

    Model:SH-S10B

    Main chip: PROLIFIC PL2303GT

    Connectors: USB Type A, DB9 Male;

    LED: Power ,Tx, RX

    RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND

    The maximum speed: 2Mbps

    Powered by USB port, no external power adapter required.

    Plug & Play after one time driver installation;



    List of supported systems:

    1,Windows 7,8,10

    2,Linux kernels 2.4.31 and later.

    3,Mac OS X 10.6 and above(64 bit)

    You can also download the driver directly from PROLIFIC's website



    Works with software
    HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc.

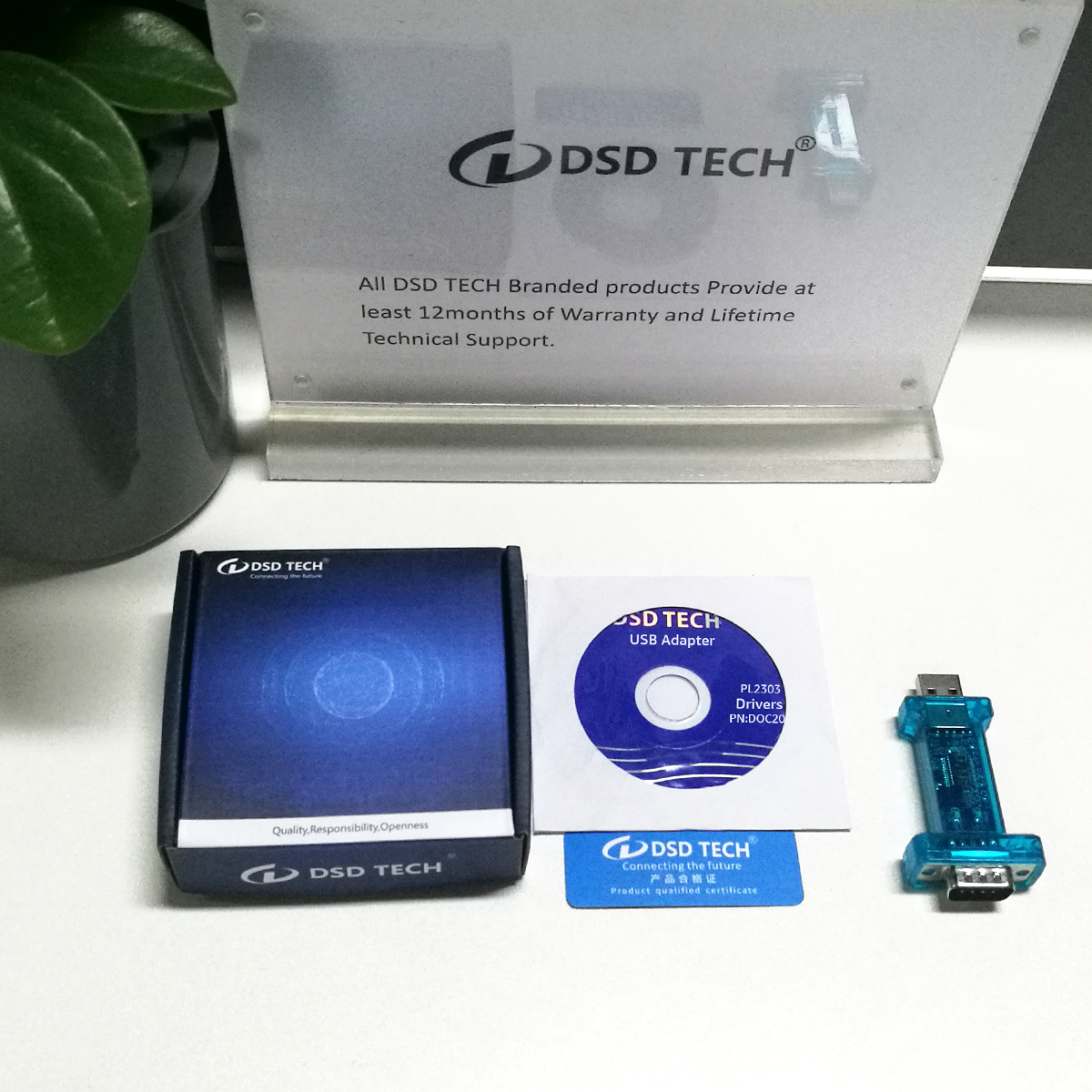

    Package Content

    1 PCS SH-S10B USB to Serial Adapter

    1 PCS User guide
