SH-AU01B USB to TOSLINK Coaxial Optical&3.5mm Audio Adapter

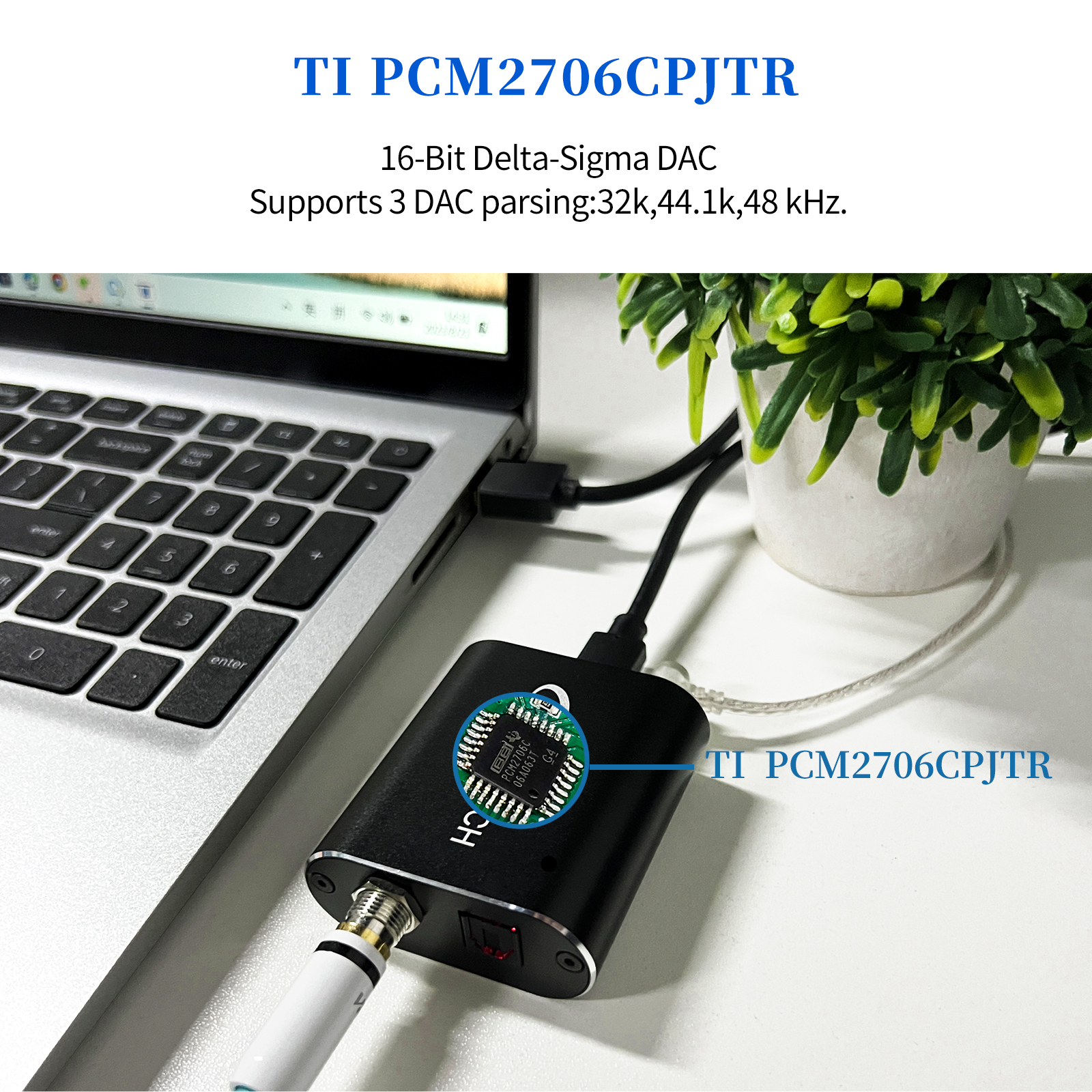

High quality digital audio: SH-AU01B converts digital audio signals to optical Toslink + coaxial COAX + 3.5mm AUX stereo audio via USB interface, suitable for PC, laptop and other equipment audio connection, audio decoding. It is compatible with all kinds of computers and laptops, and also supports PS5, Switch and other game consoles. TI PCM2706C chip: The TI PCM2706C chip provides high-quality audio codec functions.No drive required. 16-Bit Delta-Sigma DAC.Supports 3 DAC parsing:32k, 44.1k, 48 kHz. Interface:1 PCS USB-C female socket input interface; 1 PCS TOSLINK optical output interface; 1 PCS coaxial output; 1PCS 3.5mm headphone jack

Recommend
  • About this
  • Technical Support & File:


    1, Support File




    The SH-AU01B is a mini DAC that outputs digital audio over optical and coaxial via USB. It is an upgraded version of the SH-AU01A, which adds a 3.5MM headphone jack and a nicer case.


    Specification:

    Model: SH-AU01B

    Main Chip :TI PCM2706C

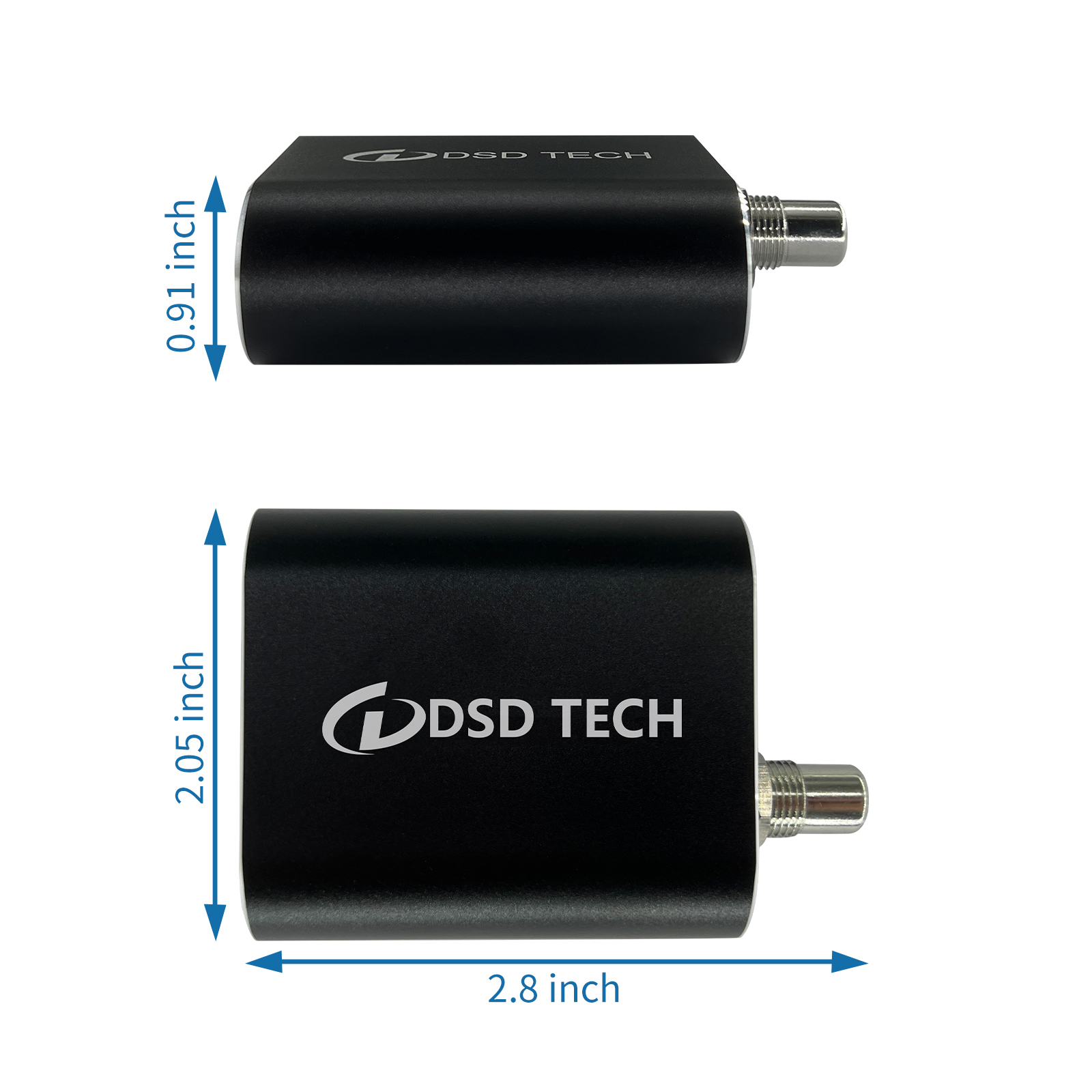

    Size: 1.97×0.83×2.28inches

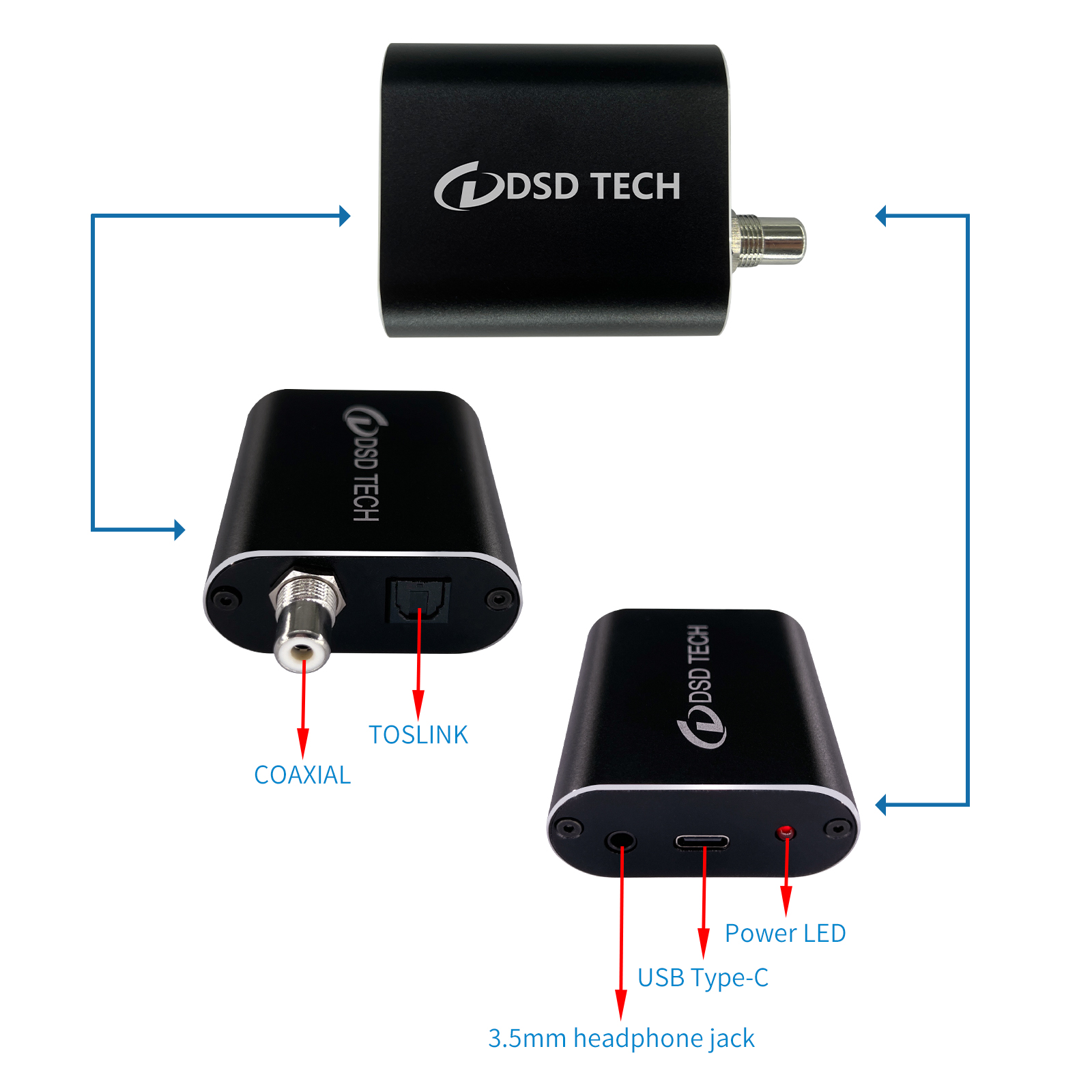

    Interface : USB-C to Toslink/Coaxial/3.5mm AUX stereo

    Audio sample rate:16-Bit/48kHz

    SNR = 98 dB

    Dynamic Range: 98 dB

    Passband Ripple = ±0.04 dB

    Stop-Band Attenuation = –50 dB

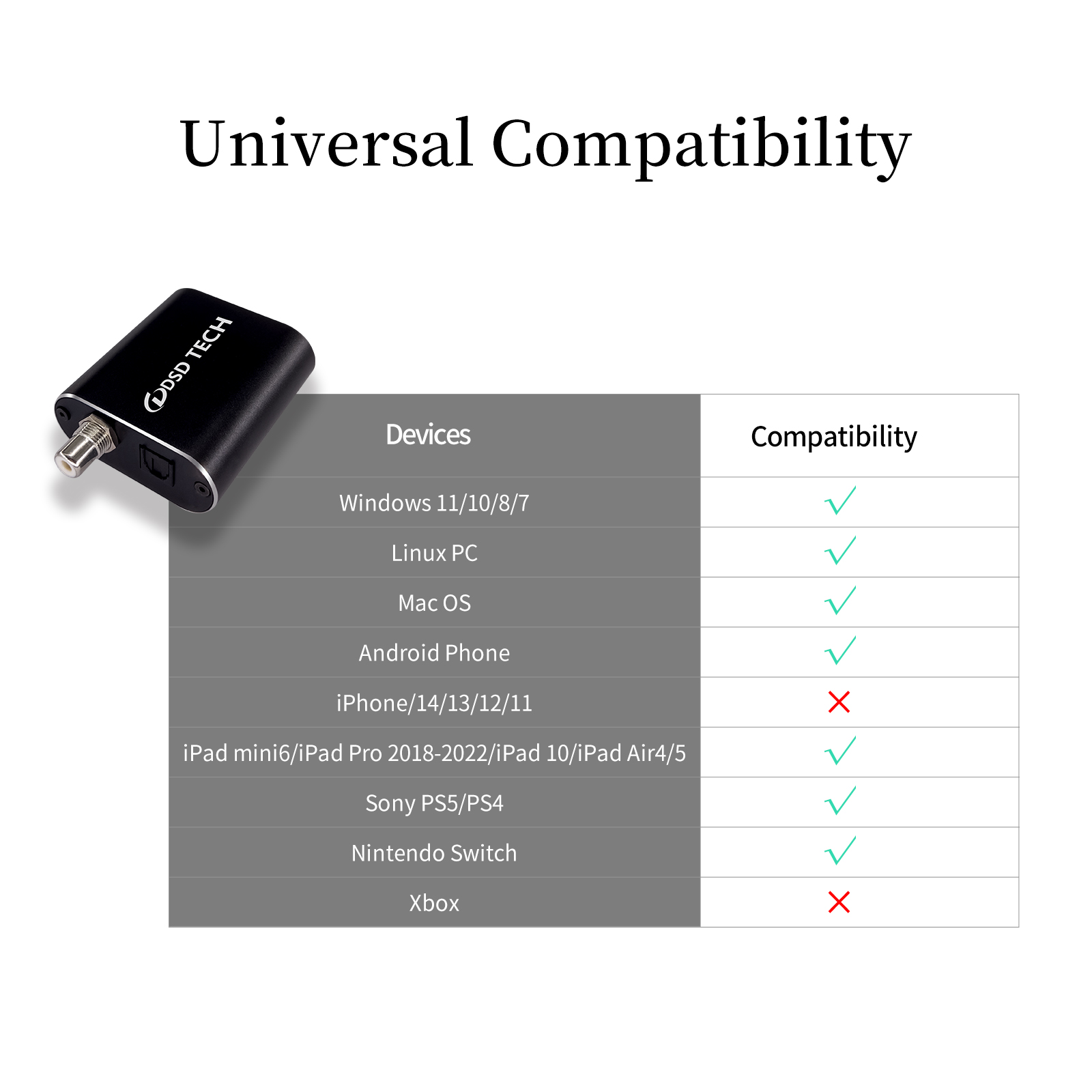

    Compatible devices:

    1,PC computer

    2,Android Devices

    3,Raspberry pi and other linux devices.

    4,PS5,Nintendo Switch

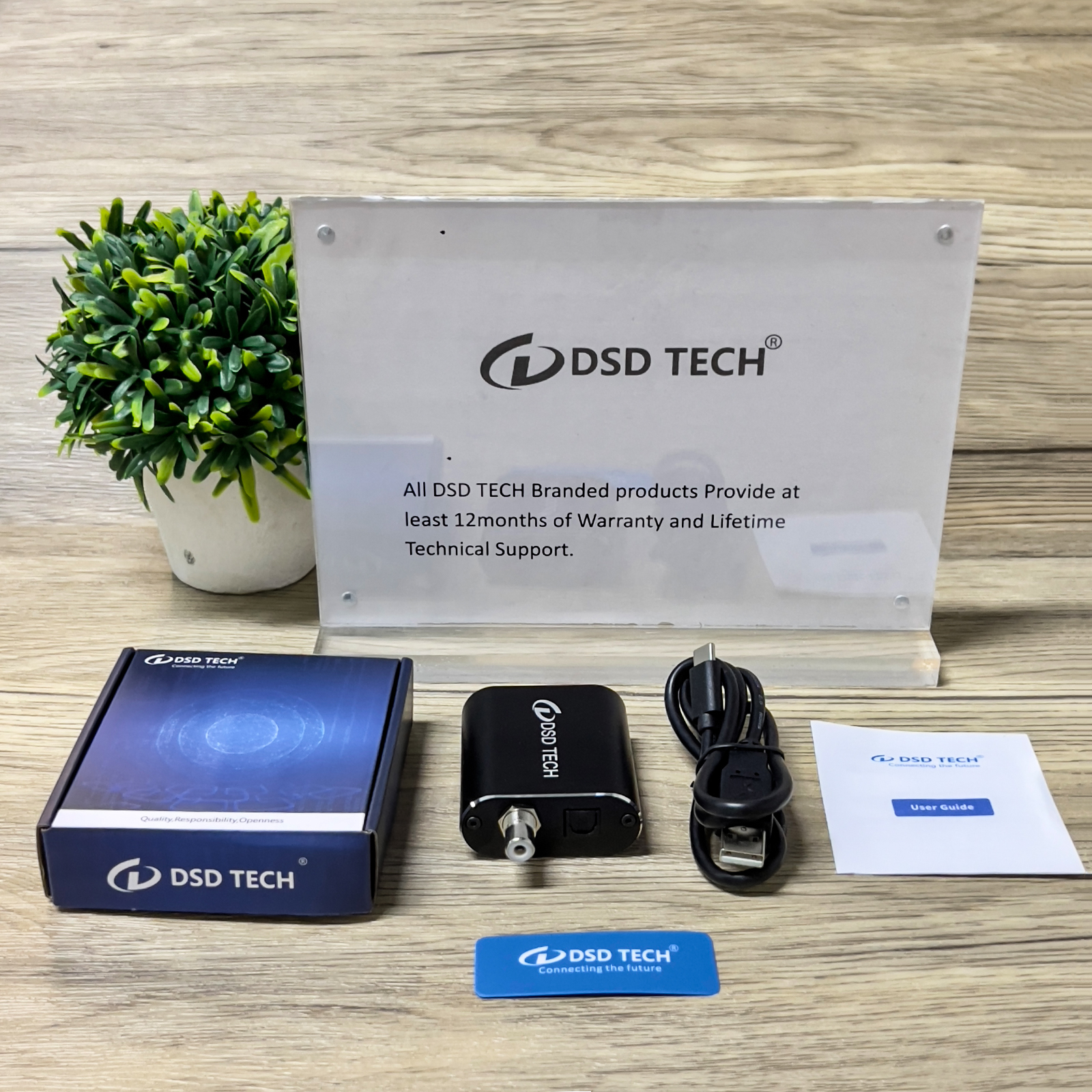

    Packing list:

    1×USB to toslink Optical Audio Adapter

    1×User manual

    1×Type-C to USB wiring
