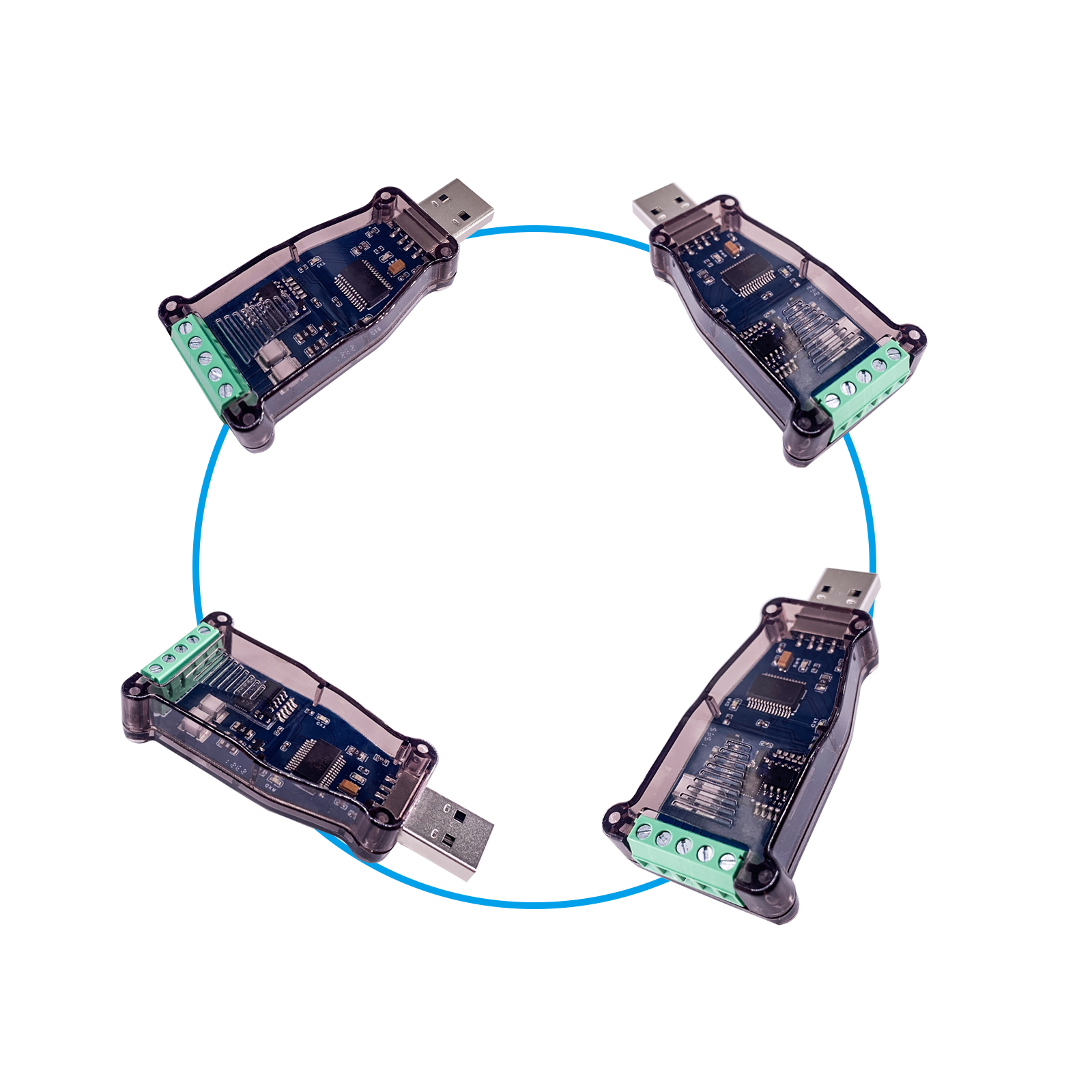

USB to CAN: With this USB CAN adapter, your computer can be connected directly to the CAN bus. It supports the CAN2.0A and B standards. FTDI FT232RNL Serial Chip:Built-in industrial-grade FTDI FT232RNL chip, you don't need to worry about the complexity of the driver. Free Software(Only Windows):With this software, you can flexibly configure various parameters for CAN communication. For example, the CAN communication rate and the operating mode.
Technical Support & File：
1, Support File
Unlike the Canable-based SH-C30A USB CAN adapter, the SH-C50A is a new USB to CAN adapter from DSD TECH, which has a built-in FTDI FT232RNL chip. When you plug this adapter into your computer, it will virtualize a serial port, and DSD TECH also provides completely free software.
Specification:
Model: SH-C50A
Standard : CAN2.0A and B
Serial chip: FTDI FT232RNL
Interface: USB Type A ,5 PIN Terminal Block
CAN PIN: CAN_H,CAN_L,GND
Compatibility: Windows 10,8,7,Linux,Mac OS
Caution:
The freeware only supports Windows operating systems, Mac and Linux are not supported.
Packing list:
1 X SH-C50A USB to CAN Adapter
1 X User manual
Technical Support & File：
1, Support File
Unlike the Canable-based SH-C30A USB CAN adapter, the SH-C50A is a new USB to CAN adapter from DSD TECH, which has a built-in FTDI FT232RNL chip. When you plug this adapter into your computer, it will virtualize a serial port, and DSD TECH also provides completely free software.
Specification:
Model: SH-C50A
Standard : CAN2.0A and B
Serial chip: FTDI FT232RNL
Interface: USB Type A ,5 PIN Terminal Block
CAN PIN: CAN_H,CAN_L,GND
Compatibility: Windows 10,8,7,Linux,Mac OS
Caution:
The freeware only supports Windows operating systems, Mac and Linux are not supported.
Packing list:
1 X SH-C50A USB to CAN Adapter
1 X User manual
