USB to RS485: With this USB to RS485 cable, your computer can establish connection with industrial control devices in RS485 network.The RJ12 interface leads to the A+, B- pins. RJ12 interface: Unlike other USB to RS485 adapters, it utilizes the RJ12 6P6C interface, which is smaller in size and designed for industrial equipment FTDI FT232RNL Chip：Based on FTDI FT232RNL chip with high stability and advertised compatibility, compatible with Windows 7, 8, 10, 11, Linux OS and Mac OS operating systems,Ideal for industrial control
Technical Support & File：
1, Support File
This USB to RS485 cable features a small RJ12 connector, which is designed for some specialized industrial equipment. Before using, please make sure its wiring sequence is consistent with your equipment, if not, you can contact DSD TECH for customization.
Specification:
Model: SH-RJ12S

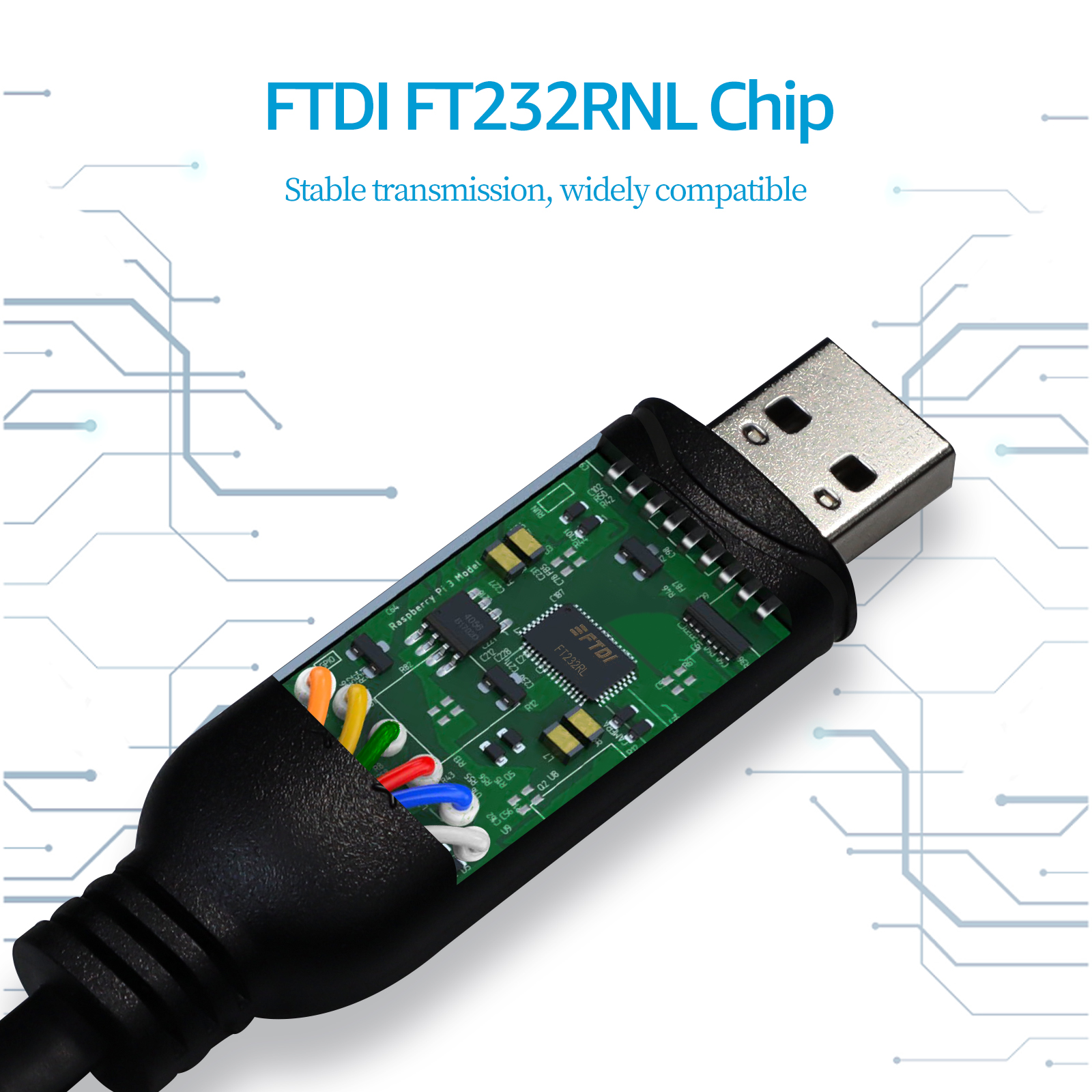

Main chip: FTDI FT232RNL

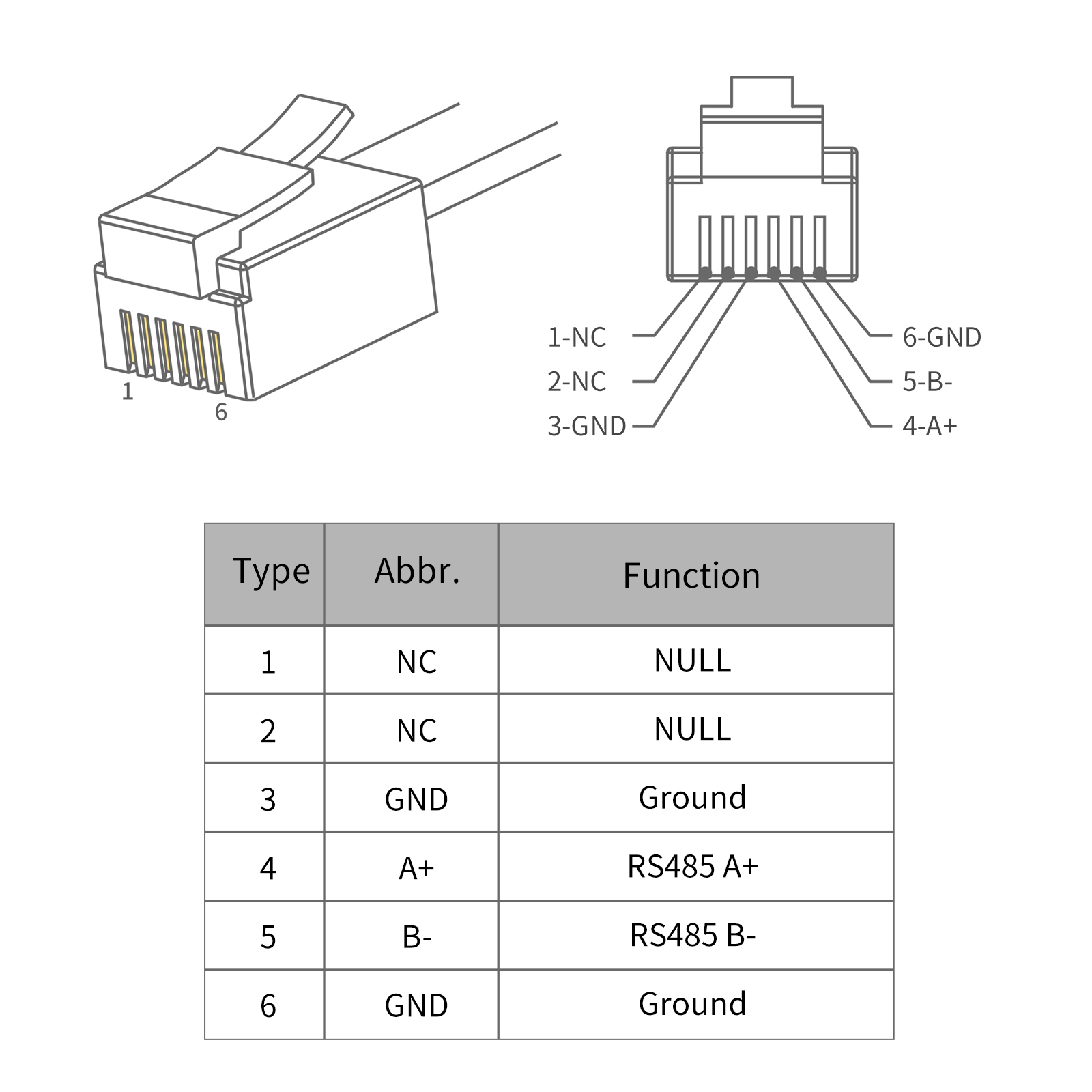

Pin Definition: GND,RS485-,RS485+,GND,NULL,NULL
Communication protocol: RS485

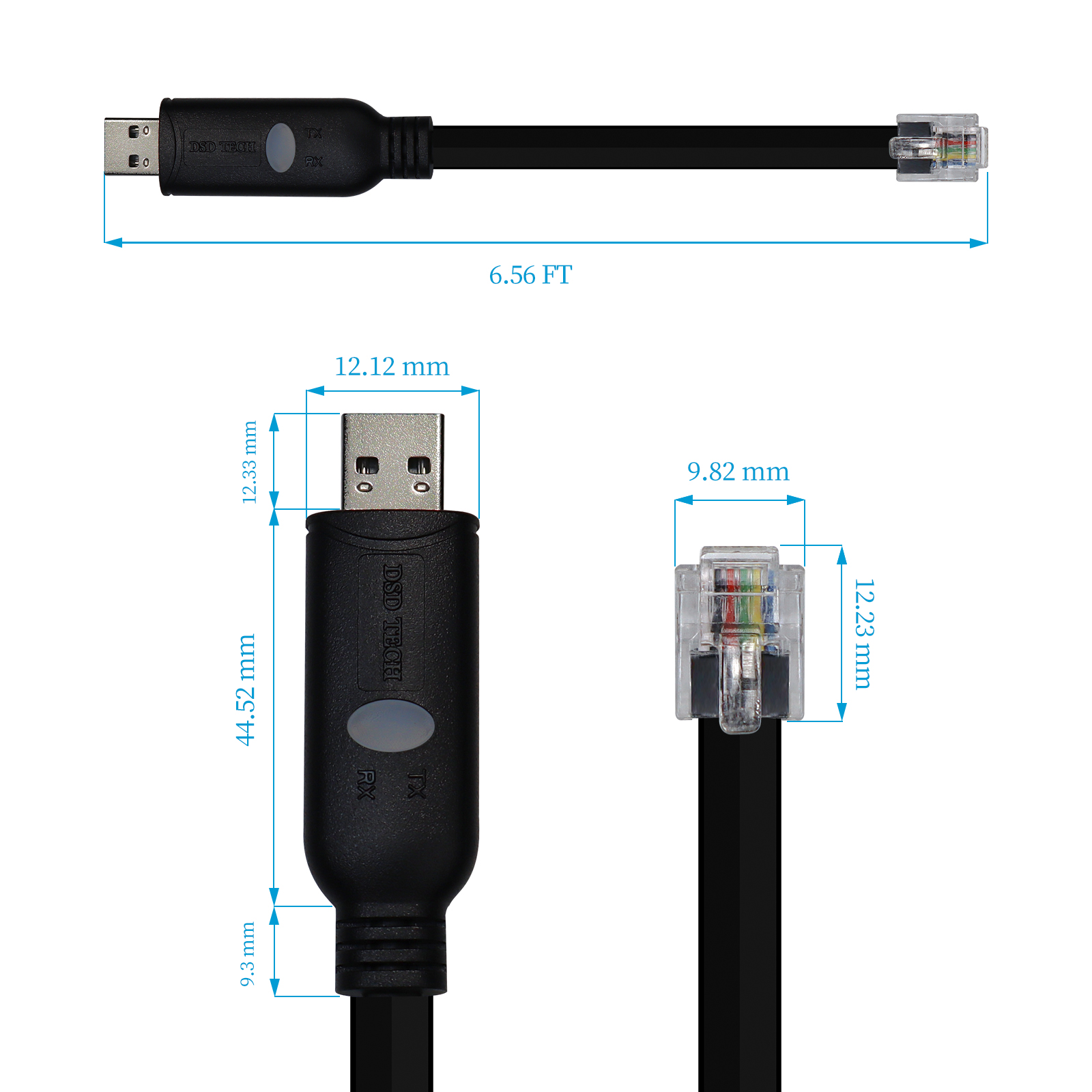

Connectors: USB A 2.0, RJ12( 6P6C)
The maximum speed：2 Mbps
Cable Lenght: 1.8M/5.9 FT

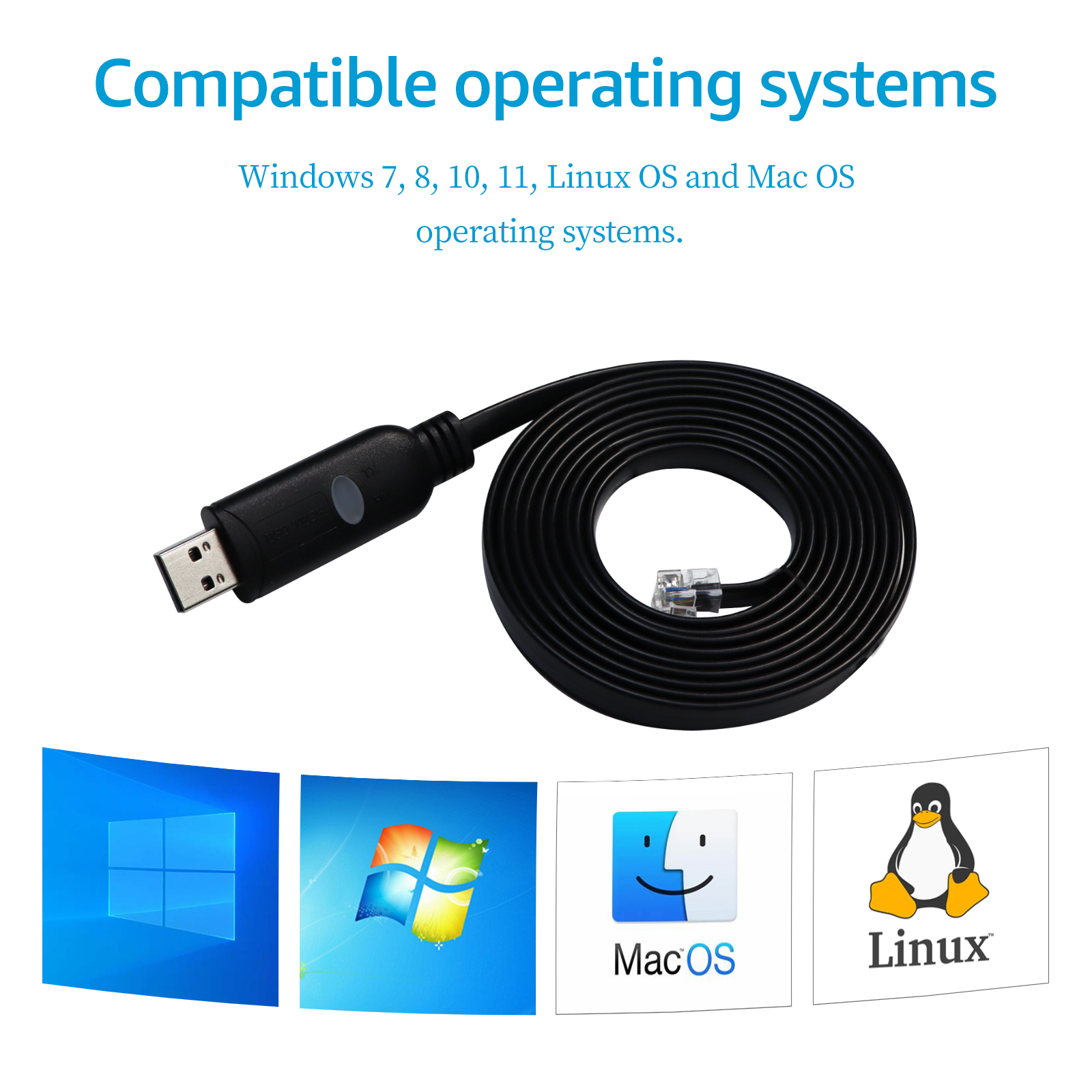

List of supported systems:
1,Windows 7,8,10,11
2,Various Linux OS and Mac OS

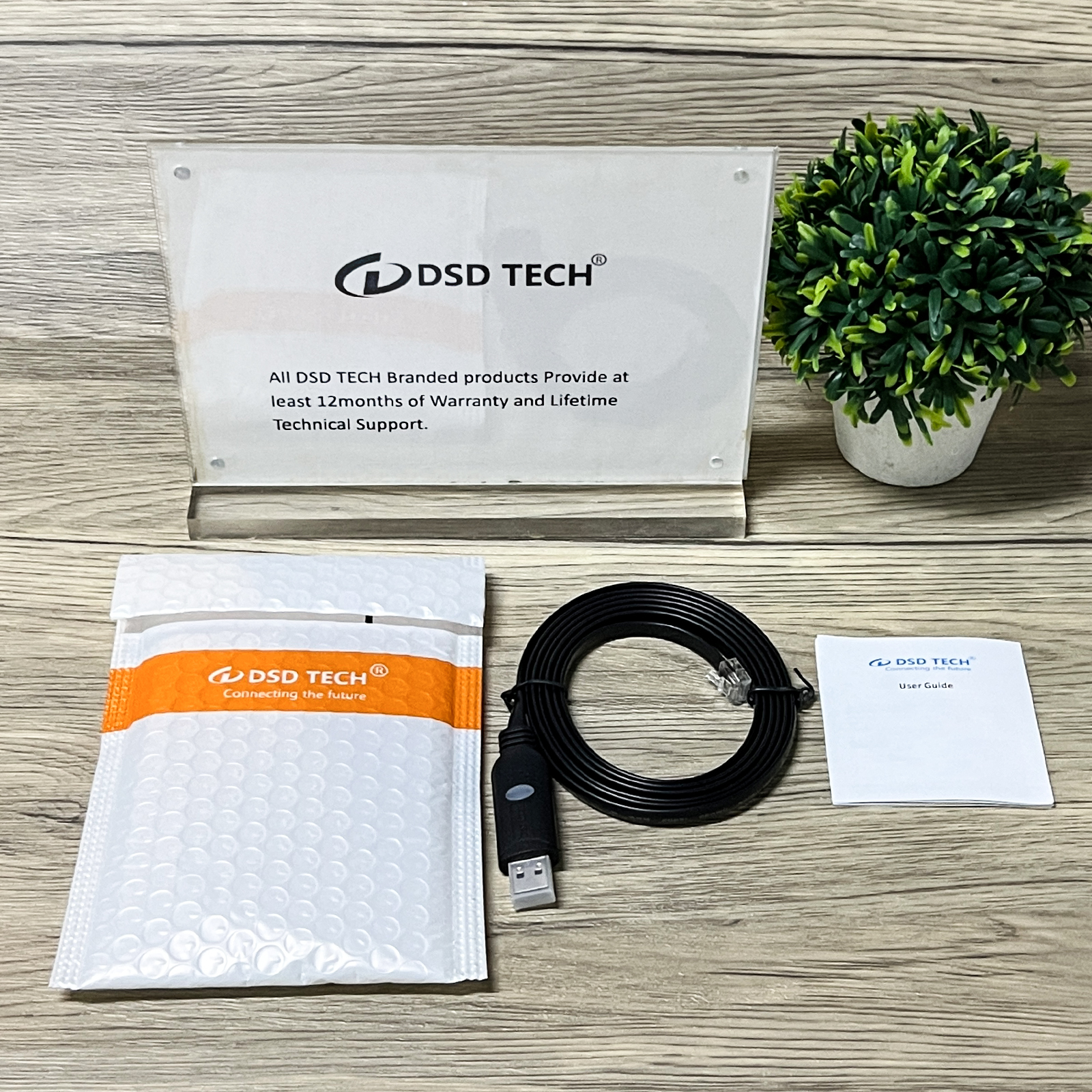

Packing list:
1 X USB to RJ12 Serial Cable(6.56 Feet)
1 X User Manual
